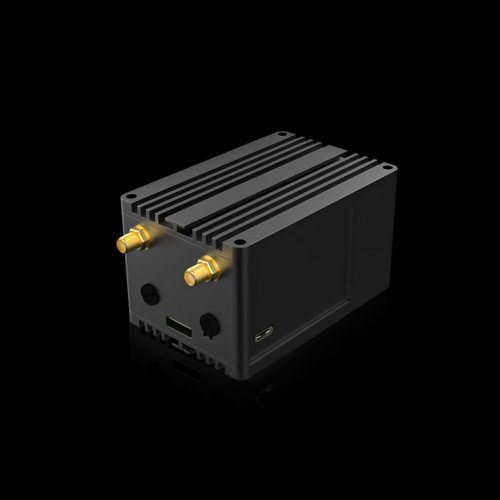

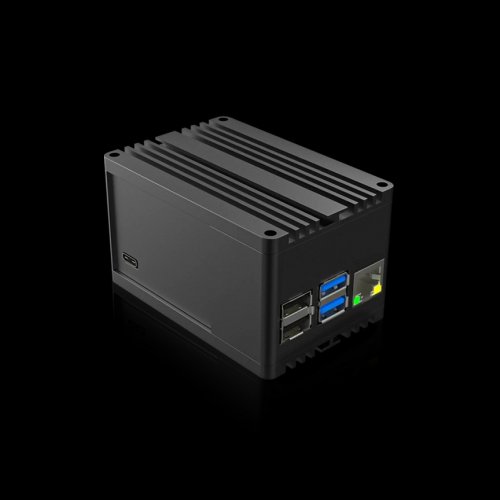

The RAK7248 WisGate Developer D4H RAK7248 is a Gateway for LoRAWAN that consists of Raspberry Pi4, RAK2287 Concentrator, and RAK2287 Pi HAT. RAK2287 includes a GPS module and a heat sink for better performance and thermal heat dissipation management, and its housing is built with an aluminum casing.

• The built-in RAK2013 Cellular Pi HAT is based on the EG95 from Quectel, which is an LTE CAT4 module optimized specifically for M2M and IoT applications.
• For the build-in RAK2287, it uses the SX1302 chip from Semtech which built-in LoRa® concentrator IP core is a powerful digital signal processing engine. It can receive up to 8 LoRa packets with different spreading factors on different channels and available in multiple variants so it can be used for international standard bands. This unique capability allows implementing innovative network architectures advantageous over other short-range systems. RAK2287 Pi HAT is a converter board with Raspberry Pi form factor that enables the RAK2287 module to be mounted on the top of the Raspberry Pi. It integrates one (1) 40-pin female Pi HAT connector and one mPCIe connector to connect RAK2287 to the Raspberry Pi 4.
• RAK7248 is ideal for prototyping, proof-of-concept demonstration, or evaluation. It includes a ready-to-use LoRaWAN Gateway OS that can be connected to a LoRaWAN server. Also, it is developer-friendly and simple even for no-so-tech users to set up a LoRaWAN system. It has to be the best value and function for connectivity to address a variety of applications like Smart Grid, Intelligent Farm, and other IoT enterprise applications.

Features:

• Refreshed Case design with a new MCU (Raspberry Pi4)
• Preassembled, fully functioning LPWAN developer gateway
• Full LoRaWAN® Stack support
• Supports for 8 channels
• Band support: 865MHz, 868MHz, 915MHz, 920MHz, 923MHz
• TX power up to 27dBm
• RX Sensitivity: -139dBm
• Integrates ZOE-M8Q GPS module
• Quectel EG95 LTE module
• PoE for the WisGate Developer D4HP(RAK7248P)

Certification:

• Ukraine Certification
• IMDA Certification

Documents:

• Datasheet

Package Includes:

• RAK7248 (Base model)
• 1 x RAK7248 LPWAN Developer Gateway
• 1 x LPWAN Antenna
• 1 x GPS Antenna
• 1 x Power Adaptor
• 1 x SD Card
• RAK7248P (variant with PoE module)
• 1 x RAK7248P LPWAN Developer Gateway
• 1 x LPWAN Antenna
• 1 x GPS Antenna
• 1 x Power Adaptor
• 1 x SD Card
• RAK7248C (LTE variant)
• 1 x RAK7248C LPWAN Developer Gateway
• 2 x LTE Antenna
• 1 x LoRa® Antenna
• 1 x GPS Antenna
• 1 x Power Adaptor
• 1 x SD Card
