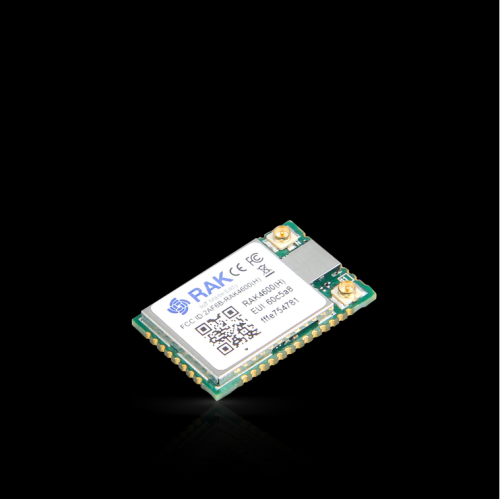

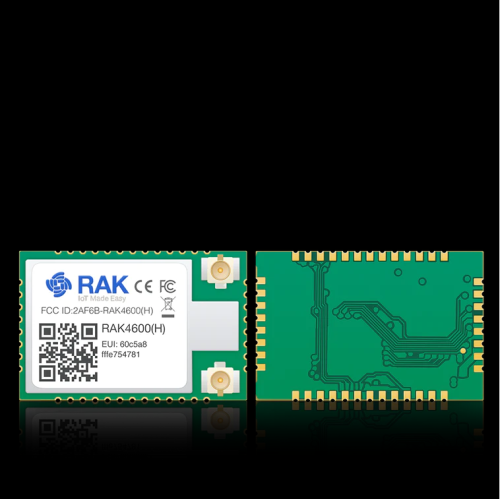

RAK4600 LPWAN Module includes an nRF52832 MCU and an SX1276 LoRa® chip. It has Ultra-Low Power Consumption of 13.3 μA (down to 11.2 μA @ 2.0 V) in sleep mode, high LoRa® output power up to 20dB max in work mode, and BLE output power up to 4dBm.

The module complies with LoRaWAN® 1.0.2 protocols. It also supports Lora® Point-to-Point communications. The Module supports BLE 5.0 in addition to LoRa®. Its RF communication capabilities (LoRa® + BLE) make it suitable for a variety of applications in the IoT field.

• Complete documentation of this product can be found on our website documentation page.
• You can find a comparison table of our LPWAN modules here.

Features:

• LoRa module for Smart City, Smart Agriculture, Smart Industry
• I/O ports: UART/I2C/GPIO (optional NFC interface)
• Frequency range: 863 to 923 MHz (entire LoRa® high band spectrum)
• Low-Power Wireless Systems with 7.8kHz to 500KHz Bandwidth
• LoRa Tx power up to 20dBm
• BLE5.0 (Tx power -20 to +4 dBm in 4dB steps)
• Serial Wire Debug (SWD) interface
• Ultra-Low Power Consumption of 13.3 μA (down to 11.2 μA @ 2.0 V) in sleep mode.
• 512 KB Flash, 64 KB RAM
• Supply voltage: 2.0 ~ 3.6V
• Temperature range: -40°C to +85°C

Documentation:

• Reference Design

Package Includes:

• 1 x RAK4600 LPWAN Modules
