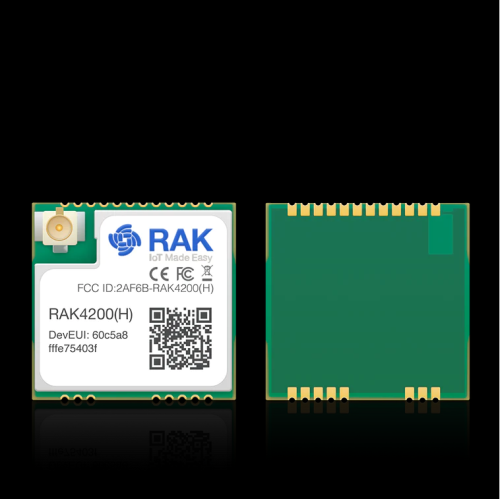

• RAK4200 WisDuo LPWAN Module

RAK4200 LPWAN Module includes an STM32L071 MCU and an SX1276 LoRa® chip. It has an ultra-low power consumption of 1.5uA in sleep mode and high LoRa® output power up to 19dBm max in work mode.

  • The module complies with LoRaWAN® 1.0.2 protocols. It also supports Lora® Point-to-Point communications. The module is suitable for various applications that require long-range data acquisition and low power consumption.
  • Complete documentation of this product can be found on our website documentation page.
  • You can find a comparison table of our LPWAN modules here.

Note:

In order to have an optimal antenna matching for the Low and High LoRa bands, there are two types of modules with different hardware. The L type module only works for the 433MHz and 470MHz LoRa bands. The H type module is for the 868MHz to 923MHz (the rest of the spectrum). Note that the hardware is specific for your selected band and can't be changed.

Features:

  • LPWAN module for Smart City, Smart Agriculture, Smart Industry
  • Compact Form Factor: 15 x 15.5 x 2.5 mm
  • 20 Pin Stamp Pad for PCB SMT mounting
  • I/O ports: UART/I2C/GPIO
  • Temperature range: -40°C to +85°C
  • Supply voltage: 2.0 ~ 3.6V
  • Frequency range: 863MHz to 870MHz (EU) / 902 to 928MHz (US), ISM and SRD systems
  • Low-Power Wireless Systems with 7.8kHz to 500KHz Bandwidth
  • Ultra-Low Power Consumption 1.5uA in sleep mode
  • Core: ARM 32-bit Cortex M0+ with MPU
  • Up to 128KB flash memory with ECC
  • 20KB RAM

Documentation:

Package Includes:

  • 1 x  RAK4200 WisDuo LPWAN Module


Write a review

Please login or register to review

RAK4200 WisDuo LPWAN Module

  • Brand: Rakwireless
  • Product Code:NR-RAK-RAK4200-WisDuo-LPWAN
  • Reward Points:12
  • Availability:In Stock
  • रo 1,160.00

  • Price in reward points:1160

  • 10 or more रo 1,115.00
  • 13 or more रo 1,105.00
  • 27 or more रo 1,100.00
  • 30 or more रo 996.00
  • 75 or more रo 987.00
  • 147 or more रo 979.00
