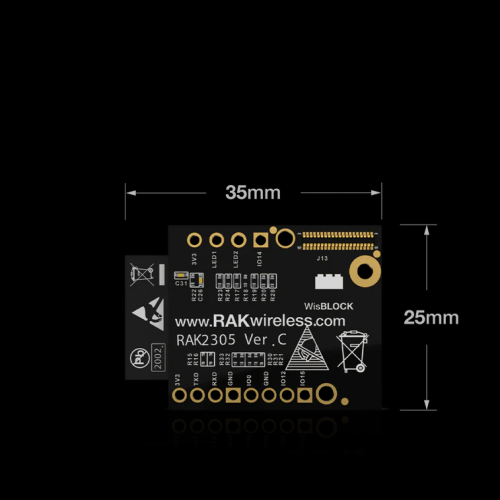

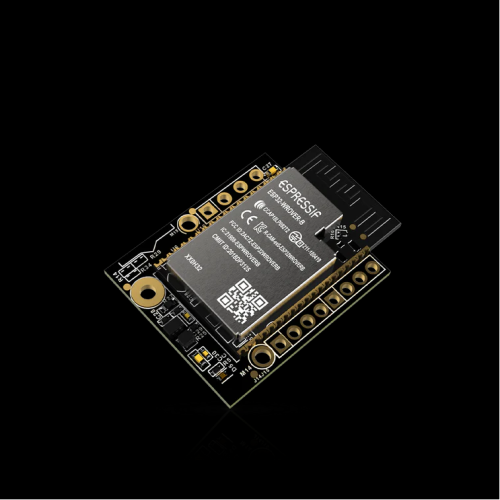

RAK2305 is based on Espressif ESP32-WROVER 2.4Ghz Wi-Fi and Bluetooth module. It is part of the WisBlock Wireless modules and requires a WisBlock Core to work.

• RAK2305 can operate in 2.4GHz WiFi and Bluetooth networks.
• RAK2305 combined with the RAK4631 WisBlock Core gives your solution additional wireless communication options. It can be used for example as a gateway between your LoRa nodes and IoT over WiFi.
• RAK2305 has in addition the option to be flashed with your custom firmware.
• RAK2305 can be comfortably programmed with the Espressif AT command interface.

Features:

• 4GHz Wi-Fi and Bluetooth module
• Based on Espressif ESP32 Wrover B
• PCB antenna
• Espressif AT command interface
• Option to flash custom firmware
• Wi-Fi connection to AP
• Wi-Fi AP mode.
• Bluetooth Master and Slave mode
• UART communication with WisBlock Core module

Documentation:

• RAK2305 Quick Start Guide
• Datasheet
• Low Level Development
• WisBlock Quick Start Guide
• WisBlock Source Code Repository
• WisBlock IO Tutorial

Package Includes:

• 1 x RAK2305
