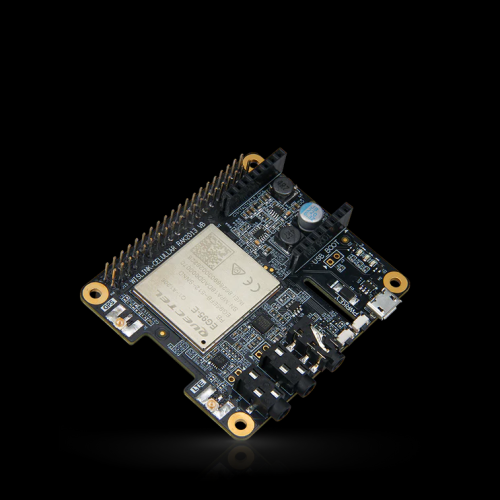

WisLink Cellular Pi Hat (RAK2013) is a Raspberry Pi 3B+ compatible cellular communication module. It is aimed at providing a Low Power Wide Area Network (LPWAN) connectivity to IoT devices. It has several configuration options of its onboard radio including the Quectel BG96/EG95. It supports the following standards: 4G/LTE, Nb-IoT, CAT-M/CAT1/CAT4 Cellular. Because of its integrated audio amp and codec, it is suitable for Voice over LTE (VoLTE) in carrier network scenarios where HD calls are a requirement. The necessary connectors for each type of operation are conveniently placed on one side of the board in order to provide easy access.

It has a built-in header that adheres to the mikroBus standard. Because of its wide range of supported sensors, it is suitable for applications such as environmental monitoring, presence sensing, etc., that require cellular connectivity.

Note that if you buy WisLink Cellular Pi Hat RAK2013 as an individual pice it will not be compatible with WisLink LPWAN RAK2245 RPi Hat and WisGate Developer RAK7243/44(without Cellular) Gateways and vice versa. RAK2245 LPWAN PiHAT module that we use in our WisGate RAK7243/44C(With Cellular) Developer Gateways is modified.

To know the difference between EG95-E and EG95-NA, please refer to the following table:


* Certifications are for the RAK2013 Cellular Pi HAT Module only.

Features

  • Cellular support
    • Nb-IoT
    • LTE CAT-M1
    • LTE CAT1/CAT4
  • Support for both nano and eSIM
  • Integrated audio amp and codec for full VoIP support
  • Full compatibility with Raspberry Pi 3B+
  • Integrated mikroBUS header
  • GPS optional support (BG96 only)
  • Built-in EEPROM for storing of auto-configuration options
  • Packaging
    • Board Dimensions: 65mm x 56mm x 19.5 mm
    • Board Weight: Approximately 0.99 oz (±0.1oz)
    • Package Dimensions: 150mm x 90mm x 40mm

Documentation:

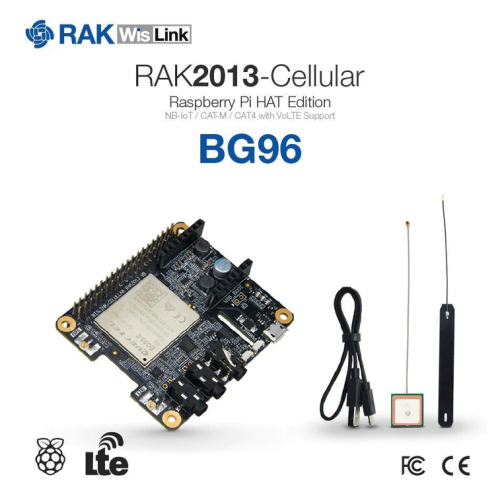

Package Includes:

  • 1 x RAK2013 board
  • 1 x LTE Antenna
  • 1 x GPS Antenna (for BG96 only)
  • 1 x Micro USB cable


Write a review

Please login or register to review

RAK2013 WisLink Cellular IoT Pi HAT

  • Brand: Rakwireless
  • Product Code:NR-RAK-WisLink-Cellular-IoT-Pi-HAT
  • Reward Points:116
  • Availability:In Stock
  • रo 11,605.00

  • Price in reward points:11605

  • 2 or more रo 11,510.00
  • 3 or more रo 11,420.00
  • 6 or more रo 11,325.00
  • 13 or more रo 11,235.00
