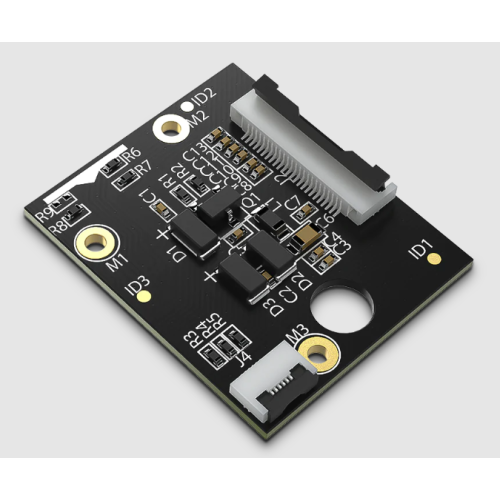

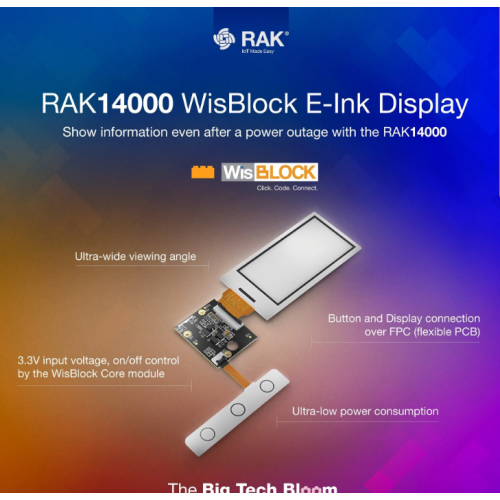

RAK14000 is a WisBlock E-paper module, specifically an Active Matrix Electrophoretic Display (AM EPD) which based on SSD1680 LCD Controller. The White-Black version is a 2.13inch display with a resolution of 212x104 pixel, the White-Black-Red version is a 2.13inch display with a resolution of 250×122 pixels.

Features :

  • White-Black display
    • 2.13 inch
    • two colors (black and white)
    • 212x104 pixel

  • White-Black-Red display
    • 2.13 inch
    • three colors (black, red and white)
    • 250×122 pixel
  • Ultra-wide viewing angle Ultra-low power consumption
  • Pure reflective mode
  • Bi-stable display
  • Commercial temperature range
  • Ultra-Low current deep sleep mode
  • On-chip display RAM
  • On-chip oscillator

Documents :

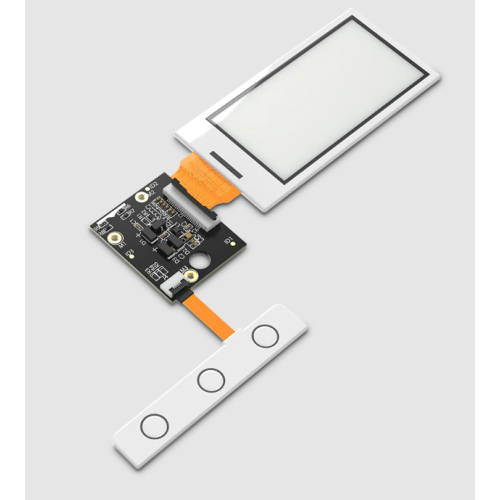

Package Includes :

  • 1 x RAK14000
  • 1 x E-ink Display panel
  • 1 x 3 button PCB

Write a review

Please login or register to review

RAK14000 WisBlock E-Paper Module Solomon Systech Limited SSD1680

  • Brand: Rakwireless
  • Product Code:NR-RAK-E-Paper-Module-Solomon-SSD1680
  • Reward Points:28
  • Availability:In Stock
  • रo 2,830.00

  • Price in reward points:2830

  • 5 or more रo 2,805.00
  • 10 or more रo 2,780.00
  • 25 or more रo 2,760.00
  • 55 or more रo 2,735.00
