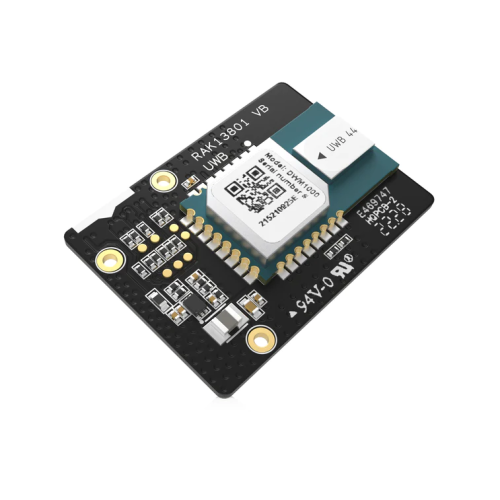

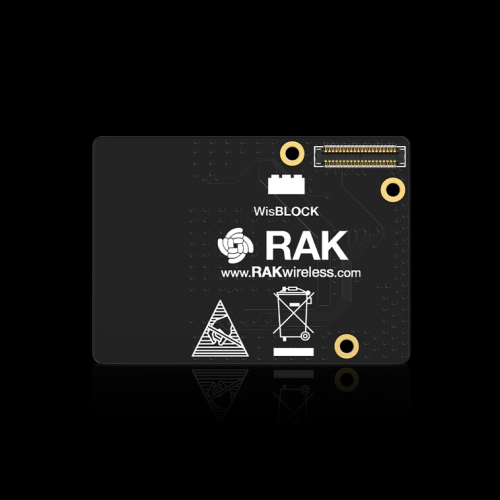

The RAK13801 UWB module is using the Decawave DW1000 UWB module that provides high precision real time location capability. It is used in location-aware wireless sensor networks, asset tracking, factory/warehouse automation and security systems.

Features:

  • Based on Decawave's DW1000 module
  • Very precise location of tagged objects delivers enterprise efficiency gains and cost reductions
  • Extended communications range minimises required infrastructure in RTLS
  • High multipath fading immunity
  • Supports very high tag densities in RTLS
  • Low cost allows cost-effective implementation of solutions
  • Low power consumption reduces the need to replace batteries and lowers system lifetime costs
  • Power Supply: VBAT and 3.3V
  • Operating Temperature: -40° C ~ 85° C
  • Module size 25x35x1mm

Documentation:

Package Includes:

  • 1 x RAK13801 WisBlock UWB Module Decawave DWM1000


Write a review

Please login or register to review

RAK13801 WisBlock UWB Module Decawave DWM1000

  • Brand: Rakwireless
  • Product Code:NR-RAK-UWB-Module-Decawave-DWM1000
  • Reward Points:54
  • Availability:In Stock
  • रo 5,430.00

  • Price in reward points:5430

  • 3 or more रo 5,385.00
  • 5 or more रo 5,345.00
  • 14 or more रo 5,300.00
  • 27 or more रo 5,255.00
