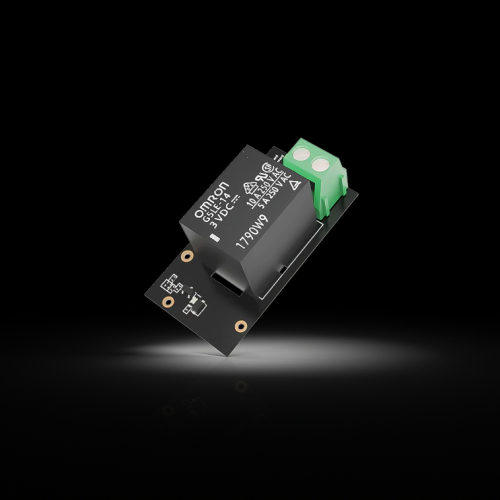

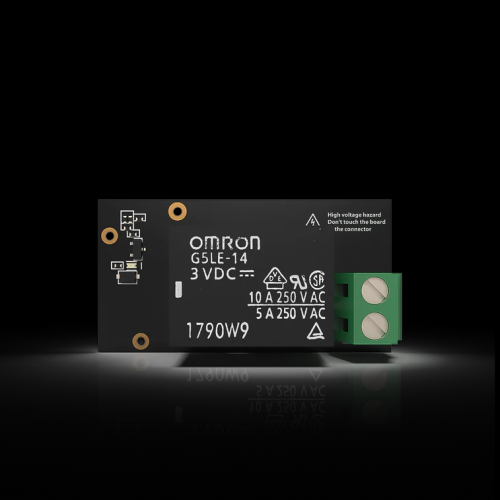

RAK13007 is a WisBlock relay module based on Omron G5LE-14 DC3 which can control AC voltage up to 250V and a max AC current of 10A (Resistive load).

• It can be used to control 250V AC equipment like light bulbs, electrical motors, fans, conveyers.

Features:

• One isolated relay output
• The isolation between internal and external is up to 2500VDC, 50/60 Hz for 1 min
• Max switching voltage/current
• Resistive load 250VAC, 125VDC 10A
• Inductive load 250VAC, 125VDC 5A
• Size: 25 x 48mm

Documentation:

• RAK13007 Quick Start Guide
• Datasheet
• WisBlock Quick Start Guide
• WisBlock Source Code Repository(opens new window)
• RAK13007 3D Model(opens new window)
• 40-Pin Male Connector 3D file(opens new window)
• WisBlock IO Tutorial

Package Includes:

• 1 x RAK13007 WisBlock Relay Module 250VAC 5A/10A Omron G5LE-14 DC3
