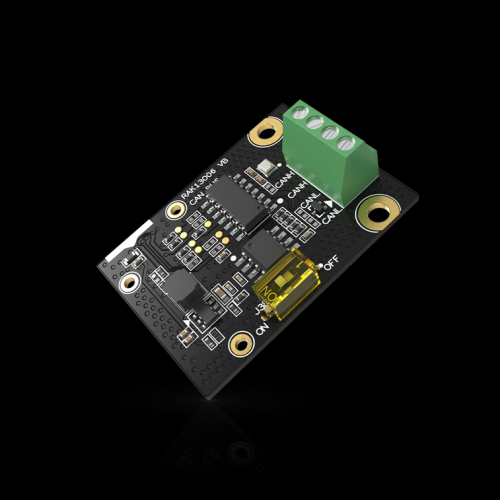

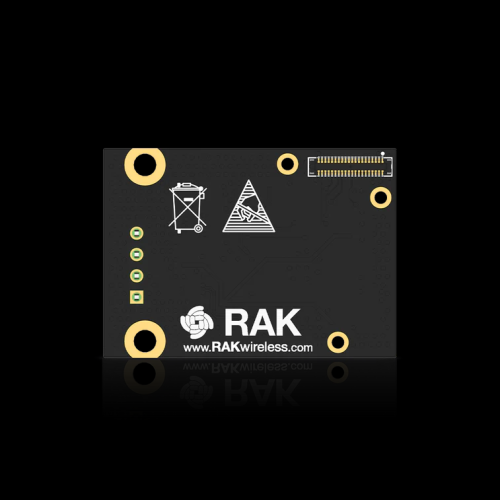

The RAK13006 is a CAN Bus interface using the Microchip MCP2518FD CAN controller. It is used in cars, trucks, building automation and has a secure data transmission as it uses differential signals. The RAK13006 supports high speed CAN up to 1 Mbit/s.

Features:

• Based on MCP2518FD and ATA6563
• Arbitration Bit Rate up to 1 Mbps
• Supports both ISO 11898-2 and ISO11898-3 modes
• Power Supply:3.3 V
• SPI bus communication
• Operating Temperature: -40° C ~ 85° C
• Size 25 x 35 x 1 mm

Documentation:

• Datasheet
• WisBlock Quick Start Guide
• WisBlock Source Code Repository
• WisBlock Interface Tutorial

Package Includes:

• 1 x RAK13006 WisBlock CAN Bus Interface Microchip MCP2518FD
