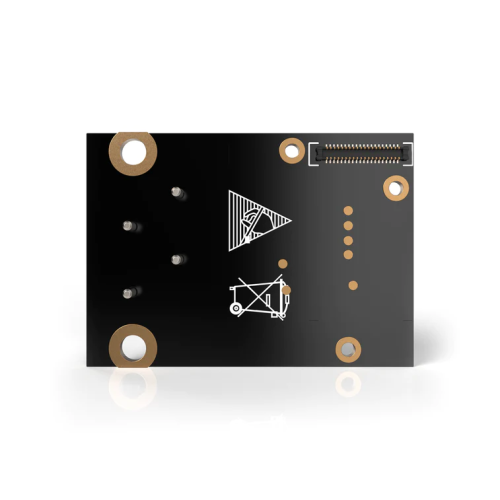

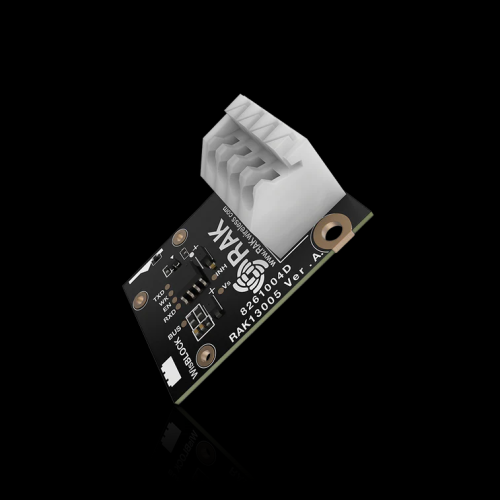

RAK13005 is a WisBlock LIN interface module based on Infineon TLE7259-3 LIN chip which is commonly used in industrial and automotive technologies. It offers safe communication over up to 40m distance between the LIN bus nodes. Beside of the use in automotive environment it is as well implemented in home appliances (like washing machines, refrigerators, …) and industrial automation (manufacturing equipment, metal working).

• The LIN bus technology consists of Peripheral (Slave) and Controller (Master) Nodes. The Controller Node is controlling the communication on the LIN bus and the Peripheral Nodes are listening.
• Please select the mode of the RAK13005 (master or slave) required in your application.

Features:

• One LIN bus connector
• Supports both Master and Slave function
• Transmission speed up to 20 kbit/s
• Cable length up to 40 meter
• Module size: 25X35mm

Documentation:

• RAK13005 Quick Start Guide
• Datasheet
• WisBlock Quick Start Guide
• WisBlock Interface Tutorial

Examples:

• Sample Code: RAK13005 LIN Data Transfer
• Sample Code: RAK13005 LIN LED Control

Package Includes:

• 1 x RAK13005 WisBlock LIN Module Infineon TLE7259-3
