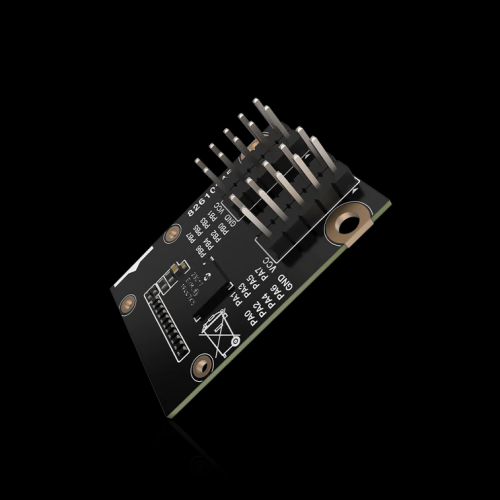

RAK13003 is a WisBlock IO expansion module based on Microchip MCP23017 which extends the available digital IO ports of the WisBlock Core module with additional 16 bidirectional IO’s. It also supports interrupt capabilities when an IO pin is used as input.

Features:

  • 16-Bit Remote Bidirectional I/O Port
  • High-Speed I2C Interface
  • Configurable Interrupt Output Pins
  • INTA and INTB can be configured to operate independently or together
  • External Reset Input
  • Low Standby Current: 1 μA (max.)
  • Operating Voltage: 2.7 V to 5.5 V @ -40 °C to +85 °C
  • Module size: 25mm X 35mm

Documentation:

Examples:

Package Includes:

  • 1 x RAK13003 WisBlock IO Expansion Module Microchip MCP23017

Write a review

Please login or register to review

RAK13003 WisBlock IO Expansion Module Microchip MCP23017

  • Brand: Rakwireless
  • Product Code:NR-RAK-IO-Expansion-Microchip-MCP23017
  • Reward Points:10
  • Availability:In Stock
  • रo 967.00

  • Price in reward points:967

  • 15 or more रo 959.00
  • 30 or more रo 952.00
  • 77 or more रo 944.00
  • 155 or more रo 936.00
