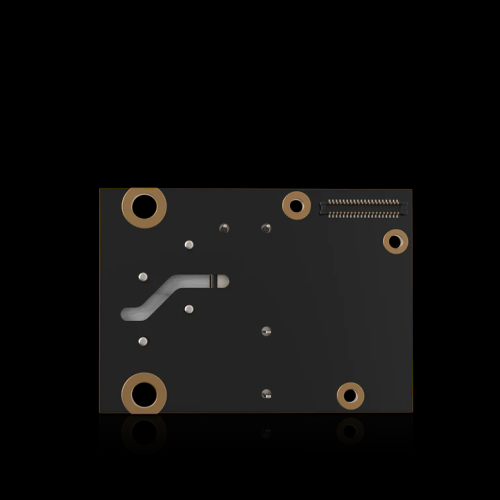

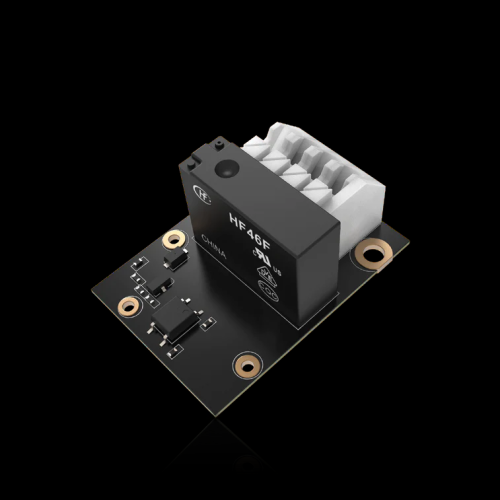

RAK13001 is a WisBlock relay module with one isolated input and one isolated output based HONGFA HF46F relay. It is used to control higher voltage signals and peripherals safely from WisBlock.

Features:

  • One relay isolated output
  • One opto-couple isolated input
  • The isolation between internal and external is up to 3750 VDC
  • The output of relay supports 30VDC/2A rating
  • The input of opto-couple supports 12-24V
  • Module size: 25X35mm

Documentation

Package Includes:

  • 1 x RAK13001 WisBlock Relay Module 30V 2A HONGFA HF46F

Write a review

Please login or register to review

RAK13001 WisBlock Relay Module 30V 2A HONGFA HF46F

  • Brand: Rakwireless
  • Product Code:NR-RAK-Relay-Module-30V-2A-HONGFA-HF46F
  • Reward Points:9
  • Availability:In Stock
  • रo 893.00

  • Price in reward points:893

  • 17 or more रo 886.00
  • 33 or more रo 878.00
  • 83 or more रo 871.00
  • 167 or more रo 864.00
