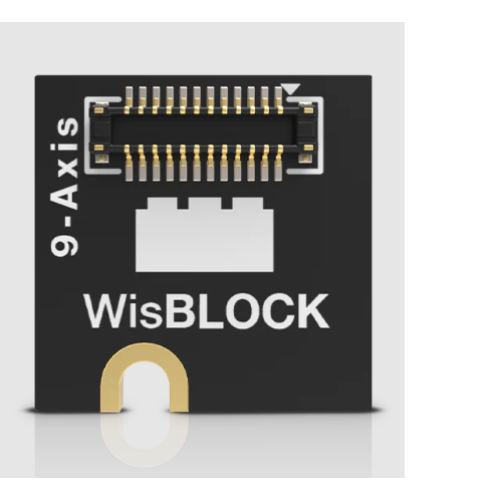

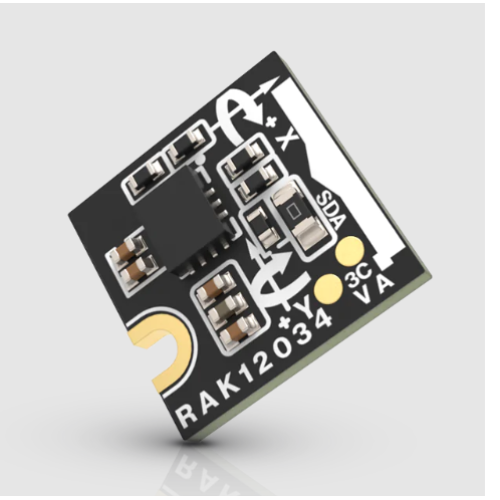

RAK12034 is a WisBlock Sensor based on the Bosch BMX160 which extends the WisBlock system with an absolute orientation sensor.

It combines a 3-axis accelerometer, a 3-axis gyroscope and a geomagnetic sensor in a small package.

RAK12034's scale from ±2g to ±16g and ±125 to ±2000 degrees/sec can be adjusted to the requirements of your application. The geomagnetic sensor has a resolution of 0.3μT.

RAK12034 combined with any WisBlock Core module is a ready to go system for navigation, orientaton measurement, tilt sensing, platform stabilization and robotic systems. The acquired data can be send using LoRaWan® communication, LoRa® point to point connections, BLE or WiFi, depending on the Core module.

RAK12034 is ideal for battery-powered applications because of its low power consumption.

Features :
  • Based on Bosch BMX160
  • Very low power consumption: typ. 1585 μA in high performance mode
  • Selectable Acceleration Range ±2 to ±16 g
  • Gyroscope Range 125 °/s to 2000 °/s
  • Magnetic Field Range x/y ±1300 z ±2500 μT
  • 3.3V Power supply
  • Operating Temperature: -40° C ~ 105° C
  • Size 10x10mm
Documents :

Package Includes :

  • 1 x RAK12034 WisBlock 9-axis Accelerometer Sensor Bosch BMX160

Write a review

Please login or register to review

RAK12034 WisBlock 9-axis Accelerometer Sensor Bosch BMX160

  • Brand: Rakwireless
  • Product Code:RAK-9-axis-Accelerometer-Sensor
  • Reward Points:19
  • Availability:In Stock
  • रo 1,860.00

  • Price in reward points:1860

  • 10 or more रo 1,845.00
  • 15 or more रo 1,830.00
  • 40 or more रo 1,815.00
  • 80 or more रo 1,800.00
