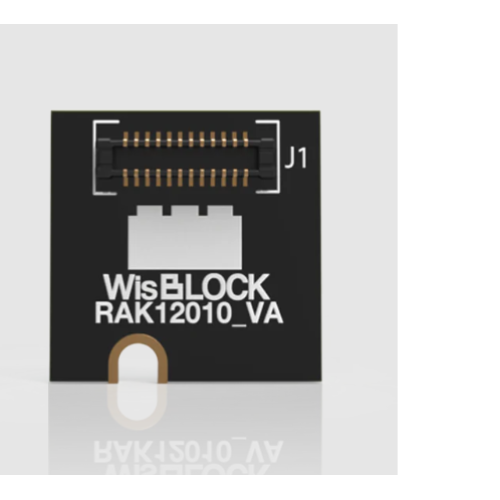

RAK12010 is a WisBlock Sensor that extends the WisBlock system to have ambient light sensing capability. It uses the VEML7700 chip from Vishay Semiconductors with an I2C interface making it easy to build an ambient light data acquisition system.
Features :
- Vishay Semiconductors VEML7700
- Ambient Light Sensor (ALS) module
- Digital 16-bit resolution sensor
- Ambient Light Range: 0 lx to about 120,000 lx
- Ambient Light Resolution: 0.0036 lx
- Excellent temperature compensation
- 3.3 V Power Supply
- Module size: 10 X 10 mm
Documents :
- RAK12010 Quick Start Guide
- Datasheet
- WisBlock Quick Start Guide
- WisBlock Source Code Repository(opens new window)
- WisBlock Sensor Tutorial
Package Includes :
- 1 x RAK12010 Wisblock Light Sensor Vishay VEML7700
RAK12010 Wisblock Light Sensor Vishay VEML7700
- Brand: Rakwireless
- Product Code:NR-RAK-Light-Sensor-Vishay-VEML7700
- Reward Points:7
- Availability:In Stock
-
रo 745.00
- Price in reward points:745
-
- 20 or more रo 740.00
- 40 or more रo 730.00
- 100 or more रo 725.00
- 200 or more रo 720.00
