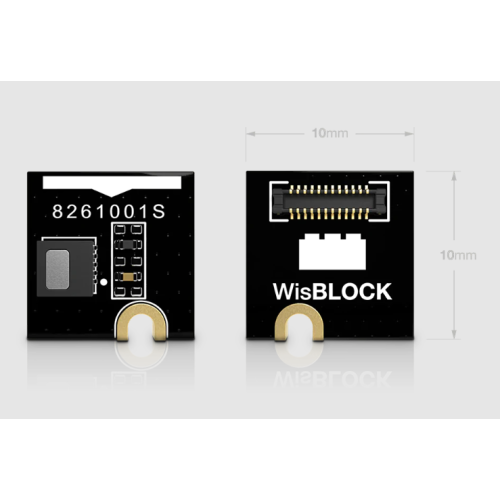

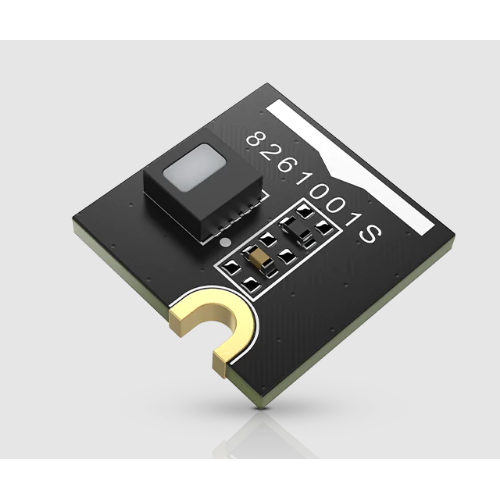

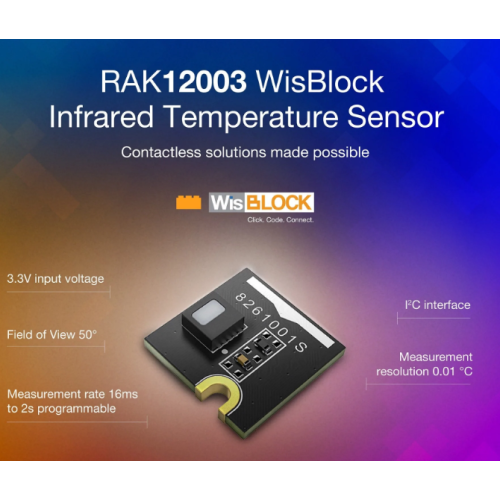

RAK12003 is a WisBlock Infrared Temperature Sensor based on Melexis MLX90632 sensor chip. It can be used on accurate contactless thermal measurement for various applications such as manufacturing industry, temperature control of moving and hard to reach parts, body temperature measurement and non-contact thermometer for IoT application.
- I2C interface
- Object temperatures between -20 °C and 100 °C
- Accuracy ±0.2° C within the narrow object temperature range from 35˚C to 42 ˚C (medical applications)
- Factory calibrated
- 50 ° field of view
- -20 °C to 85 °C operational temperature range
- Refresh rate configurable between 0.5 Hz to 64 Hz
- Sleep current: < 2.5 µA
- Module size: 10 x 10mm
- RAK12003 Quick Start Guide
- Datasheet
- WisBlock Quick Start Guide
- WisBlock Source Code Repository(opens new window)
- WisBlock Sensor Tutorial
Package Includes :
- 1 x RAK12003 WisBlock IR Temperature Sensor Melexis MLX90632
RAK12003 WisBlock IR Temperature Sensor Melexis MLX90632
- Brand: Rakwireless
- Product Code:RAK-IR-Temp-Sensor-Melexis-MLX90632
- Reward Points:22
- Availability:In Stock
-
रo 2,613.70
- Ex Tax:रo 2,215.00
- Price in reward points:2215
-
- 5 or more रo 2,596.00
- 15 or more रo 2,572.40
- 35 or more रo 2,554.70
- 65 or more रo 2,531.10
