• RAKwireless RAK11720 Breakout Board

RAK11720 Breakout Board

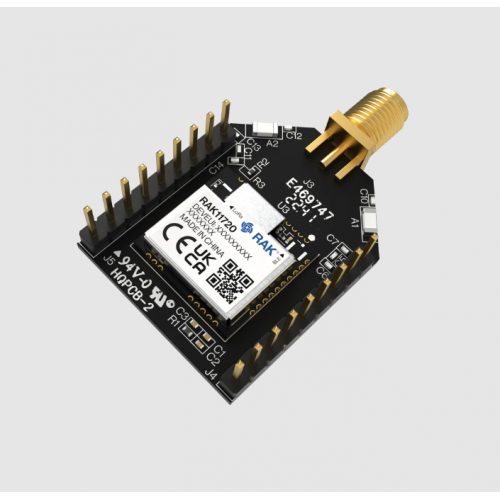

The RAK11721 breakout board is based on the powerful AMA3B1KK-KBR-B0 MCU from Ambiq (aka Ambiq Apollo3) together with a Semtech SX1262 LoRa® transceiver. It is a perfect start to evaluate the RAK11720 stamp module

  • The AMA3B1KK-KBR-B0 has an integrated Bluetooth Low Energy transceiver that enhances the communication capabilities.
  • The RAK11721 breakout board offers pin headers to access the pins of the RAK11720 stamp module with jumper wires. The breakout board includes as well a chip antenna for BLE and a SMA connector for a LoRa® antenna.
  • The two RF communication characteristic of the module (Lora® + BLE) makes it suitable for a variety of applications in the IoT field, such as home automation, sensor networks, building automation, and IoT network applications.
  • The RAK11721 comes with our RUI3 based AT command firmware that is fully compatible with the RAK3172 and RAK4631-R. In addition you can create your own custom firmware with the RUI3 API.

Features:

  • Based on AMA3B1KK-KBR-B0 and SX1262
  • Breakout Board for evaluation of the RAK11720
  • Onboard chip antenna for BLE
  • SMA antenna connector for LoRa®
  • ARM Cortex-M4F
  • 1MB Flash and 348KB SRAM
  • I/O ports: UART/I2C/SPI/ADC/GPIO
  • LoRaWAN 1.0.3 specification compliant
  • Supported bands: EU433, CN470, IN865, EU868, AU915, US915, KR920, RU864, and AS923- 1/2/3/4
  • LoRaWAN activation via OTAA/ABP
  • LoRa Point-to-Point (P2P) communication
  • Easy to use AT command set via UART interface
  • Long-range - greater than 15 km with optimized antenna
  • Ultra-low-power consumption of 2.37 μA in sleep mode
  • Supply Voltage: 1.8 V ~ 3.6 V
  • Temperature range: -40° C ~ 85° C
  • Size: 25.4 x 32.3 mm

Documentation:

Package Includes:

  • 1 x RAK11721 Breakout Board
  • 1 x LoRa® antenna
  • 18 x Dupont lines


Write a review

Please login or register to review

RAKwireless RAK11720 Breakout Board

  • Brand: Rakwireless
  • Product Code:NR-RAK-RAK11720-Breakout-Board
  • Reward Points:27
  • Availability:In Stock
  • रo 2,680.00

  • Price in reward points:2680

  • 5 or more रo 2,655.00
  • 10 or more रo 2,635.00
  • 30 or more रo 2,615.00
  • 55 or more रo 2,590.00
