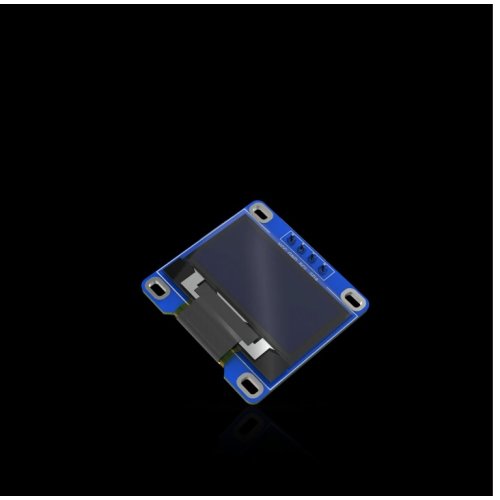

RAK1921 is a WisBlock OLED display based I2C SSD1306. A ready-to-use SW library and tutorial makes it easy to visualize data of your WisBlock solution.

• RAK1921 can be used for both text and graphic display in your application.
• RAK1921 combined with the RAK4631 WisBlock Core gives your solution an user interface that is even in bright environments easy to read.
• RAK1921 is ideal for battery-powered applications because of its low power consumption. In addition, the WisBlock system allows to power down the module completely to reduce the power consumption of the system even more.

• 0.96 in OLED display
• 128x64 pixel resolution
• Bright white color on black background
• I2C interface
• Driver IC: SSD1306
• Slim/thin Outline
• Wide Viewing Angle
• Wide Temperature Range
• Low Power Consumption
• 27.8 x 27.3 mm

• RAK1921 Quick Start Guide
• Datasheet
• WisBlock Quick Start Guide
• WisBlock Source Code Repository(opens new window)
• RAK1921 3D Model(opens new window)
• 40-Pin Male Connector 3D File(opens new window)
• WisBlock IO Tutorial
• Examples
• For All WisBlock Core Modules:
• Sample Code: RAK1921

• 1 x RAK1921
• 1 x Mounting Kit
