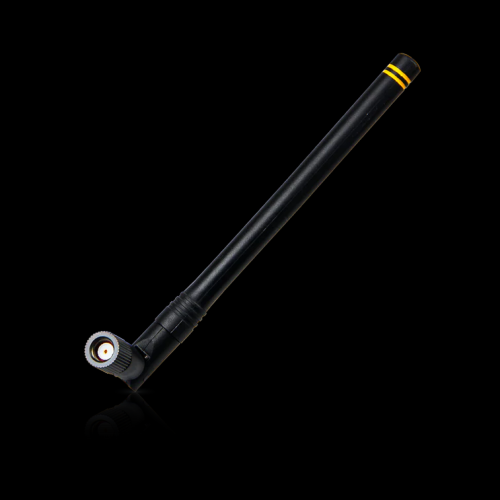

HWR Series ½-wave center-fed dipole antennas deliver outstanding performance in a rugged and cosmetically attractive package. The articulating base allows the antenna to tilt 90 degrees and rotate 360 degrees. The antenna’s internal counterpoise eliminates external ground plane dependence and maximizes performance. HWR Series antennas attach via a Part 15 compliant RP-SMA connector.

Features:

  900–930MHz 853–883MHz
Center Frequency 916MHz 868MHz
Peak Gain 1.2 dBi 2.3 dBi
VSWR ≤ 2 typical ≤ 2 typical
Bandwidth 30MHz 30MHz
Feed Impedance 50 Ohms 50 Ohms
Antenna Type ½-wave dipole ½-wave dipole
Cover Material (color) Plastic (black) Plastic (black)
Connector Type RP-SMA RP-SMA
Diameter 8.2 ~ 10.0mm 8.2 ~ 10.0mm

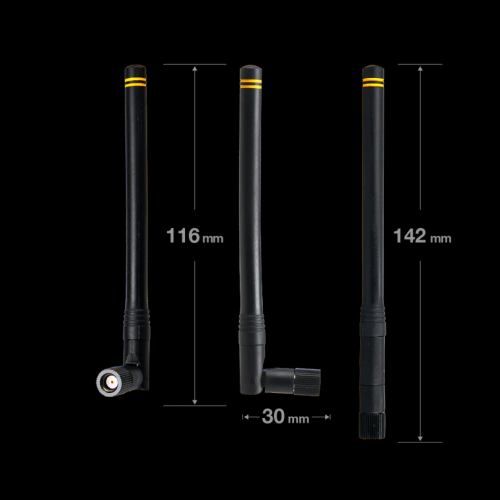

Length 142.0mm 142.0mm
Operation Temperature –30°C to +80°C –30°C to +80°C

Documentations:

Package Includes:

  • 1 x LoRa Antenna

Write a review

Please login or register to review

Helium 916MHz Antenna, 868MHz Antenna

  • Brand: Rakwireless
  • Product Code:NR-RAK-Helium-916MHz-868MHz-Antenna
  • Reward Points:15
  • Availability:In Stock
  • रo 1,490.00

  • Price in reward points:1490

  • 10 or more रo 1,475.00
  • 20 or more रo 1,465.00
  • 50 or more रo 1,450.00
  • 100 or more रo 1,440.00

Available Options


Related Products

5dBi Fiberglass Antenna

5dBi Fiberglass Antenna

This is a high quality outdoor antenna designed to be deployed outdoor, for better range. The antenn..

रo 5,660.00

2dBi SubG Antenna

2dBi SubG Antenna

This antenna for LoRa frequencies has a gain of 2dBi and is compatible with RAK's wide-range of LPWA..

रo 744.00

Tags: Helium, 868MHz, Antenna
