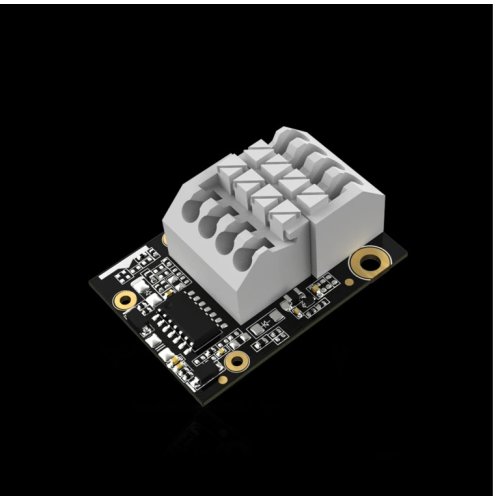

• RAK5811 WisBlock 0-5V interface Module
RAK5811 is a WisBlock IO which extends the WisBlock system with analog input ports. A ready to use SW library and tutorial makes it easy to connect any sensor that is using an 0 to 5V analog interface.
RAK5811 has 2 analog input ports that are connected to the ADC ports of the WisBlock Core module. In addition an I2C interface connection is available on the crimping terminal.
RAK5811 combined with the RAK4631 WisBlock Core gives your solution an interface to industrial sensors and actuators that uses an analog signal. This interface is the bridge between such sensors and LoRaWan communication, LoRa point to point connections or BLE.
RAK5811 is ideal for battery-powered applications because of its low power consumption. In addition, the WisBlock system allows to power down the module complete to reduce the power consumption of the system even more.

Features:
  • 2 analog input ports
  • 10mV accuracy
  • 0-5V input range
  • Analog to digital converter module.
  • Low power consumption
  • Small form factor
Documents:
Package Includes:
  • 1 x RAK5811

Write a review

Please login or register to review

RAK5811 WisBlock 0-5V interface Module

  • Brand: Rakwireless
  • Product Code:RAK-WisBlock-interface
  • Reward Points:9
  • Availability:In Stock
  • रo 893.00

  • Price in reward points:893

  • 15 or more रo 886.00
  • 35 or more रo 878.00
  • 85 or more रo 871.00
  • 165 or more रo 864.00
