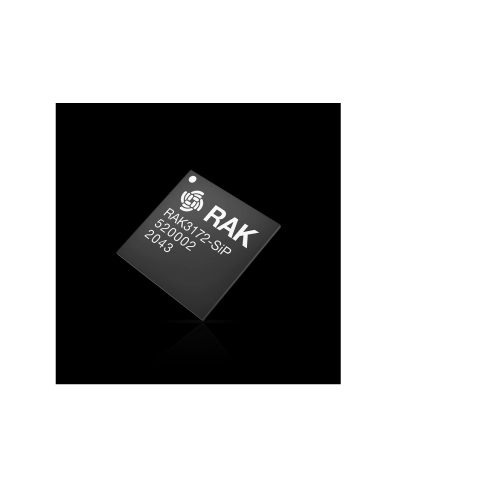

• RAK3172-SiP STM32WLE5 SiP Module for LoRaWAN
RAK3172-SiP is a low-power long range transceiver system in a package (SiP) that is based on STM32WLE5CC chip. It provides an easy to use, small size, low-power solution for long range wireless data applications. This module complies with Class A, B & C of LoRaWAN 1.0.3 specifications. It can easily connect to different LoRaWAN server platforms like TheThingsNetwork (TTN), Chirpstack, Actility, etc. It also supports LoRa Point-to-Point (P2P) communication mode which helps you in implementing your own customized long-range LoRa network quickly.
You can configure the mode and operation of the module using AT commands via a UART interface. RAK3172-SiP also offers low power features which is very suitable for battery-powered applications. It is RUI3 compatible which allows you to create custom firmware using RUI3 APIs.
Note: The RAK3172-SiP does not come with pre-flashed LoRaWAN credentials. You can create unique EUI’s and Keys in the LoRaWAN server and set them on the RAK3172-SiP with AT commands.
SKU Model  Description Frequency
305041 RAK3172-SiP STM32WLE5 SiP Module for LoRaWAN 8XXMHz for EU868/IN865/RU864
306039 RAK3172-SiP STM32WLE5 SiP Module for LoRaWAN 9XXMHz for US915/AU915/KR920/AS923
305049 RAK3172LP-SiP Low Power Version STM32WLE5 SiP Module for LoRaWAN 8XXMHz for EU868/IN865/RU864
306049 RAK3172LP-SiP Low Power Version STM32WLE5 SiP Module for LoRaWAN 9XXMHz for US915/AU915/KR920/AS923
Features:
  • Based on STM32WLE5
  • System-in-Package form factor
  • RUI3 API compatible
  • LoRaWAN 1.0.3 specification compliant
  • Supported bands: IN865, EU868, AU915, US915, KR920, RU864, and AS923
  • LoRaWAN Activation by OTAA/ABP
  • LoRa Point-to-Point (P2P) communication
  • Easy to use AT Command Set via UART interface
  • Long-range - up to 15 km with optimized antenna
  • Use TCXO for better frequency stability
  • ARM Cortex-M4 32-bit
  • 256 kbytes flash memory with ECC
  • 64 kbytes RAM
  • Ultra-Low Power Consumption of 1.69 μA in sleep mode
  • Supply Voltage: 2.0 V ~ 3.6 V
  • Temperature Range: -40° C ~ 85° C
  • Size: 12mm x 12mm x 1.22mm
  • Package: LGA73 type
Documentations:
Package Includes:
  • 1 x RAK3172-SiP STM32WLE5 SiP Module for LoRaWAN

Write a review

Please login or register to review

RAK3172-SiP STM32WLE5 SiP Module for LoRaWAN

  • Brand: Rakwireless
  • Product Code:RAK-RAK3172-SiP
  • Reward Points:9
  • Availability:In Stock
  • रo 891.00

  • Price in reward points:891

  • 15 or more रo 884.00
  • 35 or more रo 877.00
  • 85 or more रo 870.00
  • 165 or more रo 863.00
