• RAK10700 Wisblock GNSS Tracker for LoRaWAN u-blox ZOE-M8Q

WisBlock LPWAN Tracker Solution is a GNSS location tracker "Built With RAK's WisBlock"

It is a ready to use product that can be used to track the location of assets, trucks, containers.

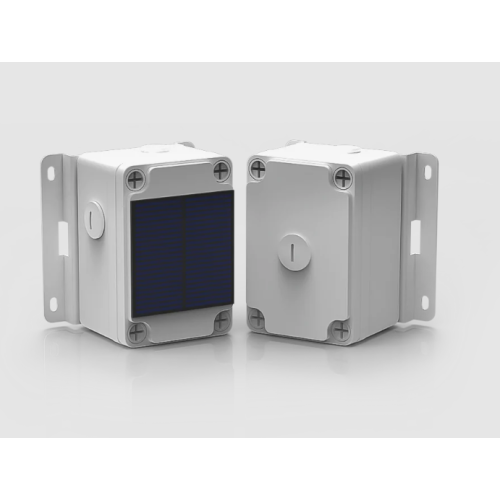

It comes in an IP65 enclosure with an optional Solar Panel to recharge the battery and extend the work time.

It supports both LoRaWAN and LoRa P2P connectivity.

The customer can setup all credentials and settings over USB by using an AT command interface that is compatible with our RAK3172

The product supports all upper frequency LoRaWAN regions (RU864, IN865, EU868, RU865, US915, AU915, KR920, AS923)

The firmware of the LPWAN Tracker is open source and can be easily adapted by the customer to his personal needs (https://github.com/RAKWireless/LPWAN-Tracker-Solution)

Note 1: If a non-rechargable battery is used with WisBlock Base Board it has to be unplugged before connecting the USB cable to the port on the board in order to configure the device. Not doing so might damage the battery and board and can cause fire.

Note 2:  The product is delivered without a battery. You need to buy a matching battery and connect it to the Tracker for LoRaWAN.

Features :

  • Supports sleep mode, low power consumption.
  • Built-in LIS3DH - digital motion sensor, which has dynamic user selectable full scales of ±2g/±4g/±8g/±16g and is capable of measuring accelerations with output data rates from 1 Hz to 5 kHz.
  • Environment sensor: Built-in Bosch BME680 air quality sensor
  • GNSS location sensor: u-blox ZOE-M8Q
  • LoRaWAN 1.0.2 Standard support - ABP or OTAA mode.
  • LoRa P2P support.
  • LoRa, BLE, and GPS antenna are integrated inside the casing.
  • Micro USB for configuration and charging of the battery
  • Supports global license-free frequency band: IN865

Documents :

Package Includes :

  • 1 x RAK10700 Wisblock GNSS Tracker for LoRaWAN u-blox ZOE-M8Q

Write a review

Please login or register to review

RAK10700 Wisblock GNSS Tracker for LoRaWAN u-blox ZOE-M8Q

  • Brand: Rakwireless
  • Product Code:NR-RAK-GNSS-Tracker-LoRaWAN-ZOE-M8Q
  • Reward Points:126
  • Availability:In Stock
  • रo 12,545.00

  • Price in reward points:12645

  • 2 or more रo 12,445.00
  • 5 or more रo 12,345.00
  • 12 or more रo 12,245.00
