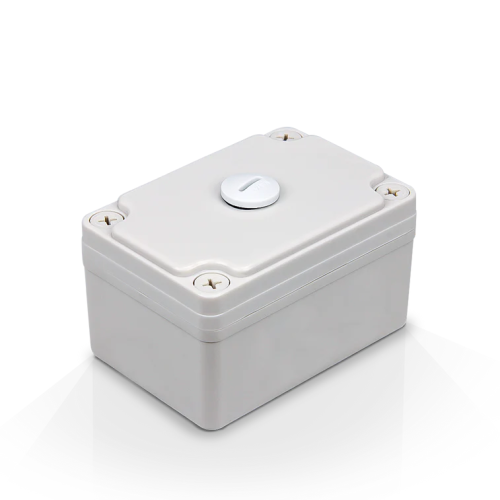

Made up of lightweight plastic, this enclosure is small, solid, and perfect for setups where space is limited. It is rated IP67/NEMA-6, making it completely protected from dust ingress and submersible up to 1m in water.

Board Support

• 96Boards form factor board (e.g. RAK5205)
• iTracker form factor board (e.g. RAK8212)

 Features :

• IP67 / NEMA-6 ingress protection.

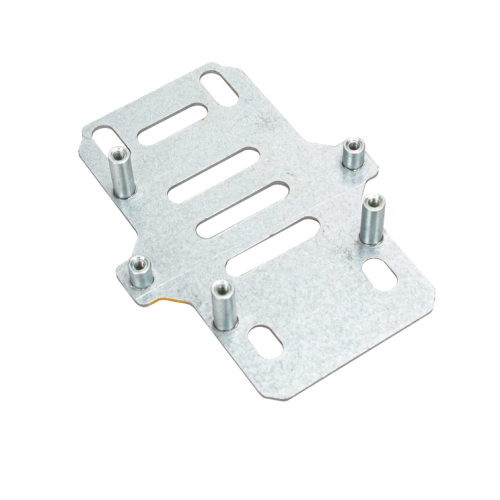

• Applicable for pole and wall mounting. The diameter of the pole it can be attached to is between 60mm and 75mm.
• Customizable: We can customize it for you by printing your logo on it, or painting the enclosure in a different color.
• 1 x 16mm ports supporting N-type connectors / circular connector GX16

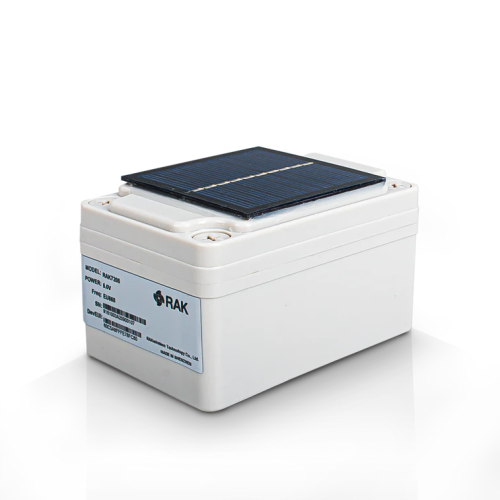

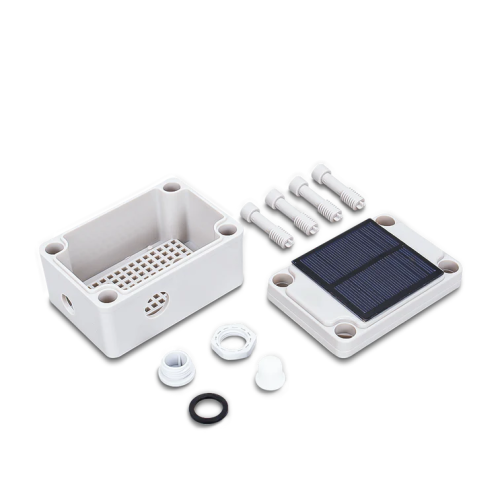

• Solar Panel Specifications:
• Panel Dimensions: 60mm x 60mm x 2mm
• Voltage at nominal power: 5V (±10%)
• Current at nominal power: 80mA (±5%)
• Cell efficiency: 17.5%
• Working Environment:
• Temperature:-20-65ºC
• Humidity: 45-95%
• UV resistance
• The ZH1.5-2P connector
• Red cable is for positive pole
• Black cable is for negative pole

Package Includes:

Enclosure Weight: 0.5kg

Enclosure Dimensions: 150mm x 90mm x 90mm

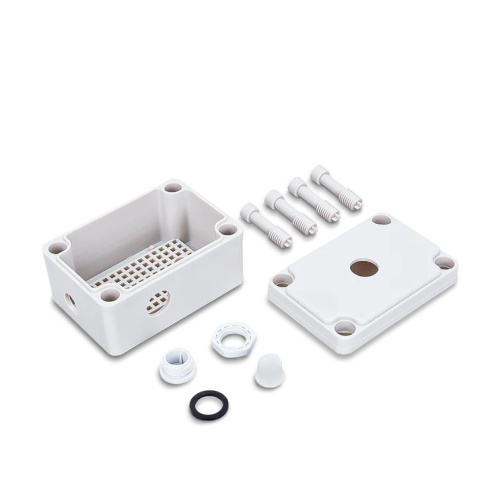

• 1 x Sensor Enclosure
• 1 x sets Port Plugs
