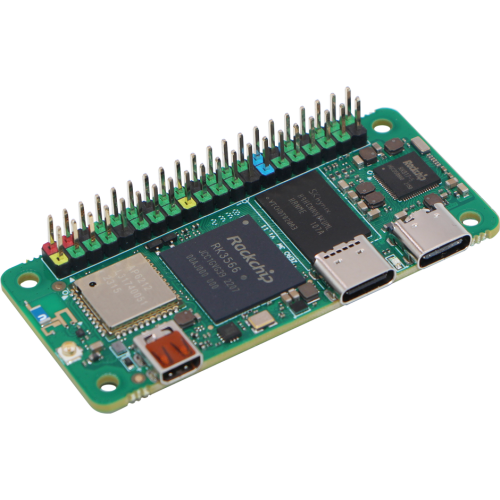

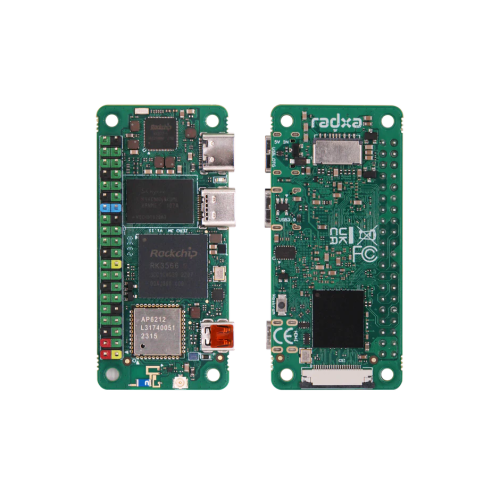

Rockchip RK3566 64bit quad core based Mini SBC

Quadcore power with up to 8GB LPDDR4 RAM with the dimensions of an USB-stick.

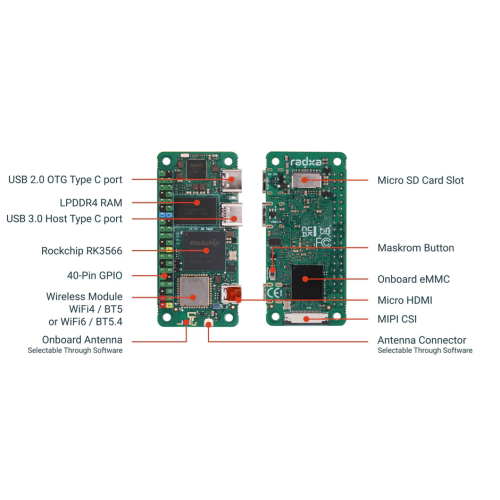

RADXA Zero 3W product details

Rockchip RK3566 64bit quad core processor

• Quad‑core Arm® Cortex®‑A55 (ARMv8) 64‑bit @ 1.6GHz


GPU

• Arm Mali™‑G52‑2EE, OpenGL® ES1.1/2.0/3.2, Vulkan® 1.1, OpenCL™ 2.0


Memory LPDDR4

• LPDDR4 1GB /2GB /4GB /8GB


WiFi/BT onboard (WiFi4+BT/WiFi6+BT5.4)

• WiFi4 (802.11 a/b/g/n) /BT with onboard antenna and uFL connector*

• WiFi6 (802.11 a/b/g/n/ac/ax) /BT5.4 with onboard antenna and uFL connector*


antenna option can be configured via software

Storage eMMC 5.1

• soldered high performance eMMC 5.1 with capacities of 8GB/ 16GB/ 32GB/ 64GB


Micro SD card

• uSD slot supports up to 128G uSD card


Display Micro HDMI

• 1080p@60fps via Micro HDMI


Peripherie

• H.264/H.265 decoder up to 4K@60fps

• H.264/H265 encoder up to 1080p@60fps


USB 3.0 Type-C HOST x1

• USB 3.0 HOST


USB 2.0 Type-C OTG x1

• USB 2.0 OTG (for power and data)

MIPI CSI x1

• MIPI CSI Camera Interface


Network

• Wireless 802.11 abgn, WiFi4, Bluetooth 5.0

• Wireless 802.11 abgn/ac/ax, WiFi6, Bluetooth 5.4


IO 40-pin expansion header (depending on the model):

• up to 5 x UART

• 1 x SPI bus
• up to 2 x I2C bus
• 1 x PCM/I2S
• up to 6 x PWM
• up to 28 x GPIO
• 2 x 5V DC power in
• 2 x 3.3V power pin

Software

• ARMv8 Instruction Set

• Debian/Ubuntu Linux support
• Hardware access/control library for Linux

Others

• Maskrom button

• Size 65mm x 30mm


Essentials You Need

• RADXA ZERO 3W

• Power adapter with USB type C port equal or larger than 5W
• MicroSD Card or onboard eMMC module
• Keyboard & Mouse
• Monitor with HDMI input

Package Includes:

• 1 x RADXA Zero 3W
