A brilliant accessory for your Rock Boards

High brightness and resolution combined with gravity sensor and the new 5 point capacitive touch make RADXA´s 8HD display a great choice for your Rock boards.

Technical specifications:

• 8 inch TFT-LCD IPS display

• Resolution: 800x1280 pixel HD
• 16.7M color
• Brightness: 300cd/m2
• View Angle: Full Viewing Angel
• Touch Panel: 5-point capacitive touch
• Interface: MIPI DSI interface
• Built-in Gravity Sensor for rotation (SC7A20)
• One cable for touch and data
• Operation temperature: -10 - +60°C
• Storage temperature: -25 ~ +70°C
• Max power consumption < 5W
• Full font touch panel and LCD
• Mounting options on the back for supported Rock boards
• Mounting option for Display in enclosure
• External dimensions: 127x199.22x5.9mm

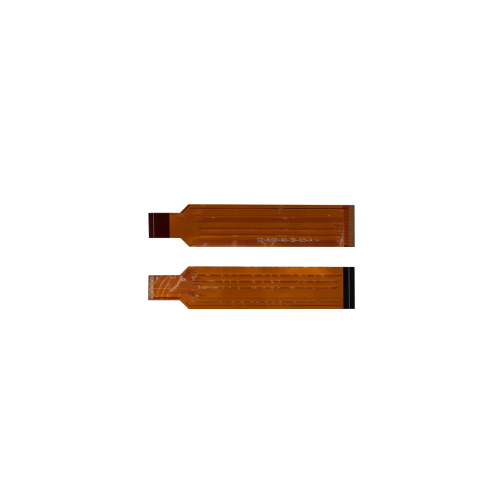

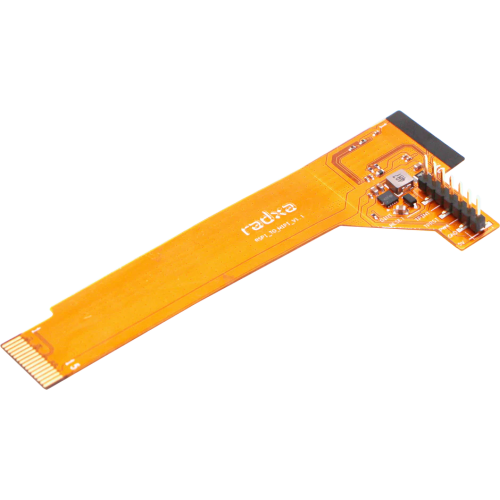

• 39 to 40 pin FPC connector cable included
• 15 to 40 pin FPC connector cable included
• OS support: Linux and Android

Hardware support:

• ROCK 3A, 3C

• ROCK 4A / 4B / 4SE / 4A+ / 4B+ / 4C+

• ROCK 5A / 5B

• Radxa ZERO 2 Pro


works as well with StarFive VisionFive 2 boards!

Package Includes:

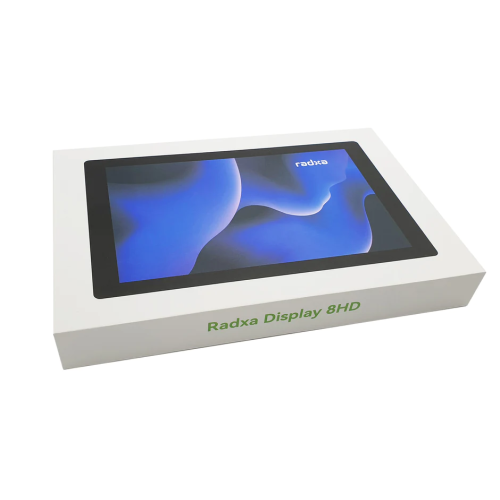

• 1 x RADXA Display 8 HD
