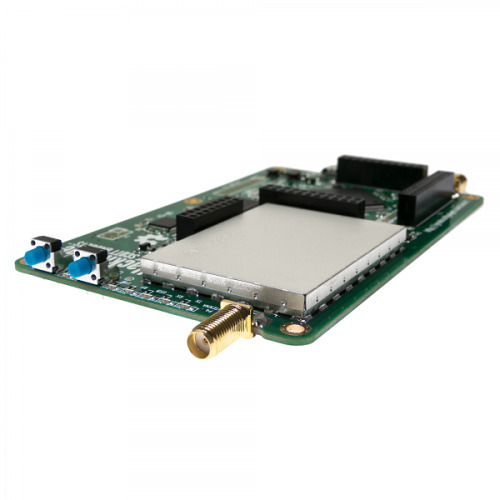

HackRF shown for installation demonstrational purposes only. HackRF is sold separately.
This kit requires basic soldering skills. Though these components are 'easy' to solder we don't recommend learning on your brand new HackRF!
The plastic enclosure included with HackRF slightly impedes the RF shield footprint area. This can be rectified either by purchasing our custom HackRF aluminum enclosure, or through minor modification of the plastic case, which can be done with a sharp hobby knife and a few minutes of time.

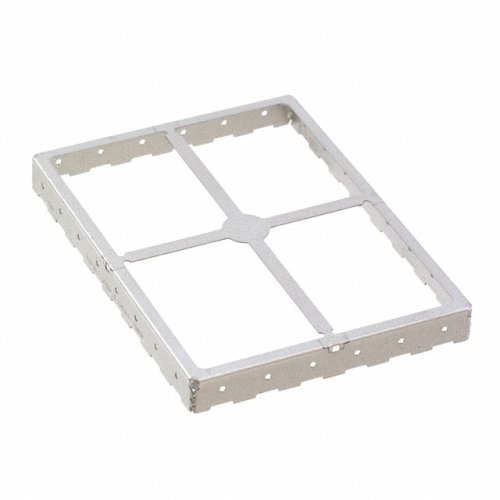

This kit contains the unpopulated RF shield for HackRF to help reduce stray EMI. The shield frame needs to be soldered to the board, and the shield cover mounts atop the frame.

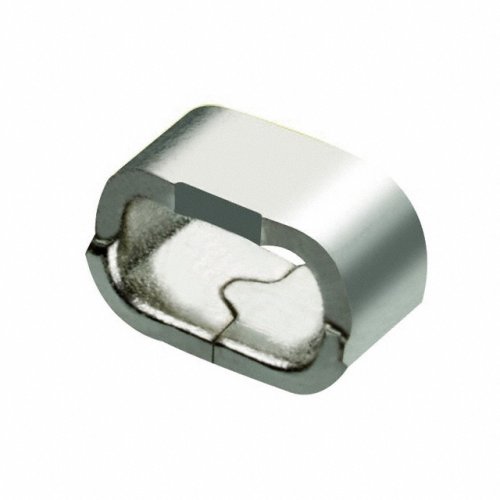

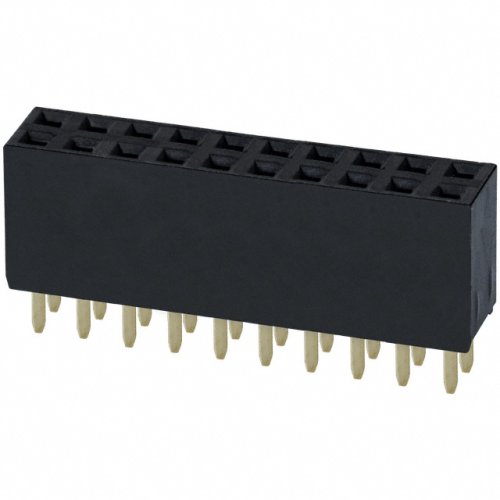

Also included is the GND clip testpoint, J10, and a 20 position female header for P30 (BANK2_AUX).
HackRF One - RF Shield and Component Kit
- Brand: Nooelec
- Product Code:NE-HackRF-One-Shield-Comp
- Reward Points:12
- Availability:In Stock
-
रo 1,257.00
- Price in reward points:1257
-
- 12 or more रo 1,247.00
- 24 or more रo 1,237.00
- 59 or more रo 1,227.00
- 118 or more रo 1,217.00
