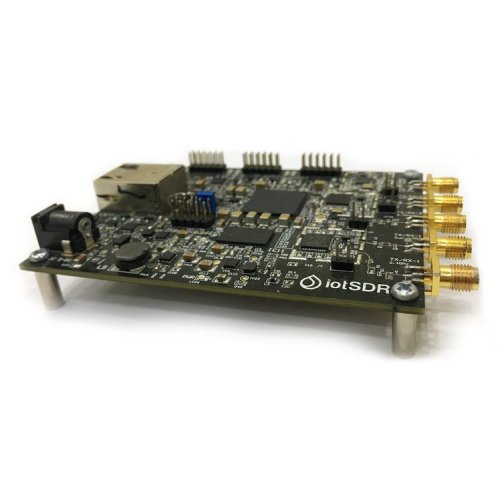

iotSDR provides a platform that allows SDR developers and enthusiasts to design innovative algorithms and cutting-edge products. While wide-band SDRs are more versatile, narrow-band transceivers perform better for many IoT-related applications. Accordingly, iotSDR hosts two narrow-band Microchip AT86RF215 transceivers that provide their own base-band cores and have the ability to handle their own I/Q signal streaming. The result is an extremely powerful tool for anyone who is looking to simplify the task of developing, testing, and deploying high-complexity frameworks.

iotSDR’s Microchip transceivers are backed by a Zynq SoC—which provides an FPGA and a processing system in a single package—as well as a MAX2769 GNSS chip capable of streaming live signal records. That GNSS chip can be used for custom GPS, Galileo, BieDou, and GLONASS receiver development, and is perfect for projects in the location-based services (LBS) domain such as those related to navigation and surveying.

Features & Specifications:

RF Transceiver: 2x Microchip/Atmel AT86RF215
- European band: 863-870 MHz / 870-876 MHz / 915-921 MHz
- Chinese band: 470-510 MHz / 779-787 MHz
- North American band: 902-928 MHz
- Korean band: 917-923.5 MHz
- Japanese band: 920-928 MHz
- World-wide ISM band: 2400-2483.5 MHz
GNSS Receiver: Maxim MAX2769B supporting GPS, GLONASS, Galileo, and BieDou
- Xilinx ZYNQ XC7Z020-1CLG400C
  - Dual-core ARM Cortex-A9 MPCore
  - 256 kb on-chip memory
  - DDR3 support
  - 85,000 logic cells
  - 53,200 LUTs
  - 4.9 Mb block RAM
  - 220 DSP slices
  - 2x UART, 2x CAN 2.0 B, 2x I²C, 2x SPI, 4x 32-bit GPIO
  - FPGA configuration via JTAG
EEPROM Memory: 1x Microchip AT24MAC602 for RF transceiver MCU firmware and data
Flash Memory: 1x QSPI 128 Mb flash memory for firmware
RAM: 512 MB DDR3
SD Card: Micro SD card slot
General User Inputs/Outputs:
- 2x 8-bit PL (Programmable Logic) interfaces
- 1x 8-bit PS (Programmable Subsystems) interface
Connectivity:
- 1x Gigabit Ethernet
- USB 2.0 High Speed (Microchip USB3310)
- USB 2.0 Full Speed (Silicon Labs CP2104)
- 2x SMA RF connector for Low Frequency IoT band
- 2x SMA RF connector for 2.4 GHz band
- 1x SMA connector for GNSS receiver
- FPGA JTAG connector for external JTAG programmer/debugger
Clock System:
- Single clock source for both RF frontends
- Separate clock for GNSS receiver
Board Dimensions: 76.2 mm x 101.6 mm

Package Includes:

1 x IoTSDR 7020

IoTSDR 7020

Brand: Crowd Supply
Product Code:CS-IoTSDR
Reward Points:827
Availability:Back-order

रo 82,663.00
Price in reward points:82663
