WisBlock Kit 3 comes with a GPS tracker sensor to detect the movement of the sensor.

Setup: Localization data are acquired with a GPS module and the location information is sent to a LoRaWan® server when the sensor changes location

Applications:

WisBlock Kit 3 is a LoRa® -based GPS Tracker.
WisBlock Kit 3 is a GPS tracker with a sensor that can be used to detect change of location for a set time interval. Use this kit for tracking and monitoring of cargo, vehicles, and marine vessels. The localization data acquired using the GPS module and the location information is sent to a LoRaWAN server when the sensor changes location.

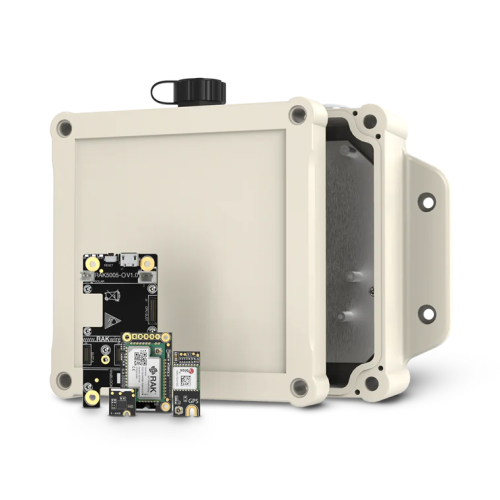

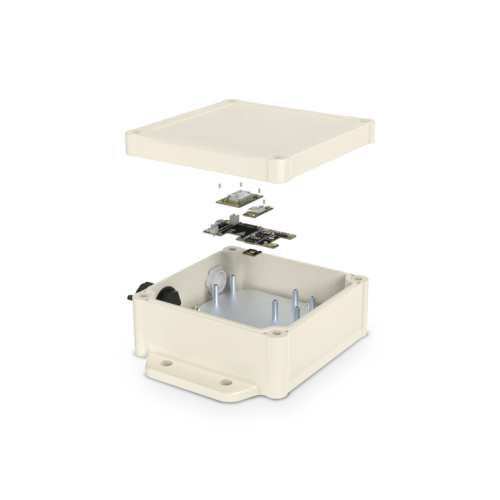

WisBlock Kit 3 is encased in a sturdy box made for outdoor industrial IoT applications.

Features :

RAK5005-O

Easy Plug'n'Play slots for WisBlock Core MCU, WisBlock Sensor, and other WisBlock modules
Small form factor
Supports 3 different power supply sources
Optimized for low power consumption applications
I2C, UART, GPIO's an analog input accessible with solder contacts
2 user-definable LED's
Reset button
USB debug port
1 slot for WisBlock Core MCU
4 slots for WisBlock Sensor sensor modules
1 slot for another WisBlock extension modules

RAK4631

LoRaWan® 1.0.2 protocol stack (supports Class A & C)
Bluetooth Low Energy 5.0 protocol stack
Nordic nRF52840
Wide range of connections
Semtech SX1262

RAK1904

Using the ST LIS3DH acceleration sensor
Low power consumption
Small form factor
User-selectable scales of ±2g/±4g/±8g/±16g
Data acquisition rates from 1Hz to 5.3kHz.
Internal buffer for 32 levels of 16-bit data

RAk1910

Using the U-Blox MAX-7Q GPS module
GNSS support for GPS/QZSS and GLONASS
Low power consumption
Small form factor
Fast location fix.
High accuracy of 2.5m
10Hz update rate
1 m/s velocity accuracy
5 degrees Heading accuracy

Software Code :

WisBlock Kit 3 | GPS Tracker

Documentation :

Note: If a non-rechargable battery is used with WisBlock Base Board it has to be unplugged before connecting the USB cable to the port on the board in order to configure the device. Not doing so might damage the battery and cause damage to the battery and board.

Package Includes :
