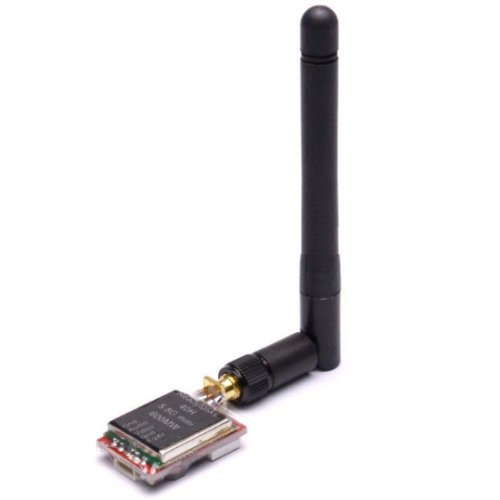

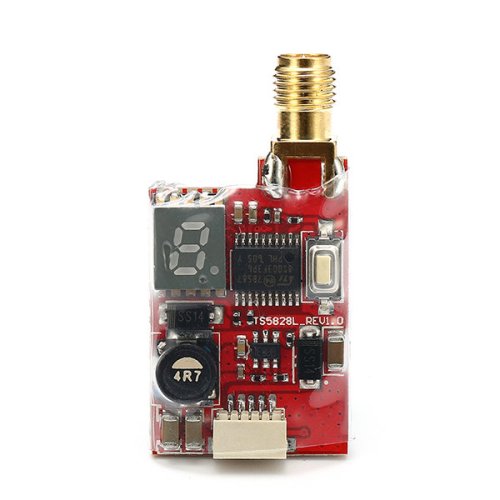

FPV Transmitter 5.8G 600mW 40CH - S5828L
Specifications
Item Name: FPV Transmitter
Channel: 40CH
Frequency: 5.6G-5.9G
Current: 190mA/12V
Temp.: -10-85
Video Bandwidth: 8M
Audio Bandwidth: 6.5M
Antenna: RP-SMA
Size: 38x18x8mm
Weight: 16g
Band and Channel selection
| CH | CH 1 | CH 2 | CH 3 | CH 4 | CH 5 | CH 6 | CH 7 | CH 8 |
| GROUP | ||||||||
| A | 5865 MHZ | 5845 MHZ | 5825 MHZ | 5805 MHZ | 5785 MHZ | 5765 MHZ | 5745 MHZ | 5725 MHZ |
| B | 5733 MHZ | 5752 MHZ | 5771 MHZ | 5790 MHZ | 5809 MHZ | 5828 MHZ | 5847 MHZ | 5866 MHZ |
| C | 5705 MHZ | 5685 MHZ | 5665 MHZ | 5645 MHZ | 5885 MHZ | 5905 MHZ | 5925 MHZ | 5945 MHZ |
| D | 5740 MHZ | 5760 MHZ | 5780 MHZ | 5800 MHZ | 5820 MHZ | 5840 MHZ | 5860 MHZ | 5880 MHZ |
| R | 5658 MHZ | 5695 MHZ | 5732 MHZ | 5769 MHZ | 5806 MHZ | 5843 MHZ | 5880 MHZ | 5917 MHZ |
Package Included:
1 x Transmitter
1 x Antenna
1 x Cable
FPV Transmitter 5.8G 600mW 40CH - S5828L
- Product Code:PRC-Radio-Transmitter-FPV-S5828L
- Reward Points:17
- Availability:Out Of Stock
-
रo 1,650.00
- Price in reward points:1650
