NOTE: Does not include the PyGo device

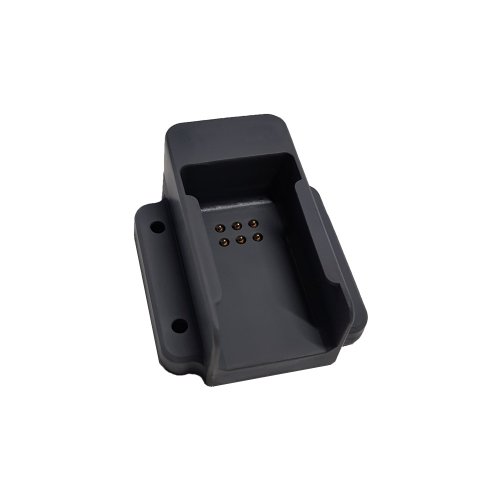

The new cradle allows you to connect your PyGo (https://pycom.io/product/pygo2/) to a computer via built in USB to UART bridge and an external sensors network via I2C serial protocol. You can program PyGo with your custom python scripts via the Cradle or wirelessly via WiFi. Firmware updates are done wirelessly via OTA. The cradle (see photo above) will also act as a wired charging base.

In addition to the I2C sensor bus, the PyGo can be re-configured to use the wired programming pins as two universal input/output pins configured as digital I/O (3.3V) or analogue ADC/DAC so that you can connect different types of sensors and actuators. In that case, programming of the device will only be possible via WiFi / Mobile app.

Features:

• Power: 5VDC, 500mA.
• Charge: Can charge 1 PyGo.
• In/Out: 2 I/O I2C bus plus 2 general purpose I/O for wired device programming. Alternatively, one of them can be configured as analog input (12bit SAR ADC) or an analog output (8bit DAC) or both of them can be configured as digital input/output pins (3.3V CMOS logic).
• USB-C connector for power and serial communicationSize: 33mm/42.5mm x 41 mm x 18.7mm

Specifications:

• Weight : 0.050 kg
• Dimensions : 5.6 × 4.6 × 2.3 cm
• Weight : 50 g
• Dimensions : 33mm/42.5mm x 41 mm x 18.7mm

Package Includes:

• 1 x PyGo Cradle
