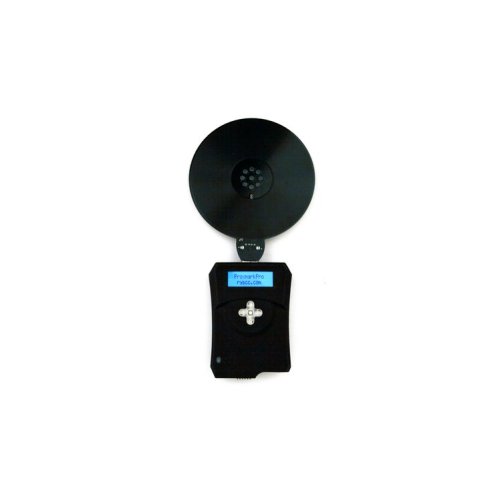

The ProxmarkPro is a portable test instrument designed to quickly discover, identify, and demonstrate weaknesses in popular RFID and NFC systems in the field.

The ProxmarkPro is NOT another development kit. It has been designed from the ground up to meet the demanding requirements of Red Teamers and security research professionals.

The ProxmarkPro is intended to be used in the field or at a desk with no client connection or setup, just turn it on and start using it. The antenna can be easily and quickly swapped out to accommodate a wide variety of systems.

Features & Specifications:

The ProxmarkPro is perfect for quickly, easily, and powerfully demonstrating vulnerabilities and risk to non-technical decision makers and stakeholders.
Portable: one-handed use, easily concealed, lightweight, compact
Self-contained: no external cables, batteries, or computers required
Built-in Display: intuitive menu visible in direct sunlight and in the dark
Swappable Antennas: no tool required to change tuned antennas
Removable Storage: capture and load data with the included 16 GB microSD card
State of the Art: built with new-and-improved FPGAs and ADCs
Made in the USA: using parts from all over the globe

Upgrades & Improvements:

This latest addition to the Proxmark line has several significant upgrades and improvements over previous versions, including:

LCD
FPGA
Nav switch
Battery
SD card

The ProxmarkPro represents the culmination of over three years of active research and development, incorporating contributions from a global team of experts and feedback from Red Teamers.

Comparisons:

The ProxmarkPro has some notable upgrades over other Proxmark models. It features an LCD, more powerful FPGA (5x) and ADC, navigation switch, built-in Lithium-ion battery, and microSD card slot.

Proxmark Comparisons:

If you’ve used other Proxmark models, the ProxmarkPro will on one hand be familiar, and on the other hand offer a lot of new funcitonality not previously available. The ProxmarkPro is the only model that has an unchained mode, but, like earlier models, it can also still be controlled with PC client software over USB. However, as we add more features to the unchained mode, the hope is the client will be something you only occasionally need to use.

	ProxmarkPro	Proxmark3	Proxmark3 RDV4
CPU	AT91SAM7S512	AT91SAM7S512	AT91SAM7S512
FPGA	Spartan 3	Spartan 2	Spartan 2
Interface	LCD + Onscreen Menu	4x LED	8x LED
USB Device Mode	✓	✓	✓
Unchained Mode	✓
Removable Storage	✓
Battery	✓
Nav Switch	✓
Antennas	Modular		Internal
Enclosure	✓	✓	✓
SIM/SAM Reader			✓
Swappable Antennas	✓	✓	✓
Long Range Antennas	✓	✓	✓
HF Read Range	Up to 100 mm	Up to 100 mm	Up to 85 mm
HF Long Range	N/A	N/A	100 - 120 mm
LF Read Range	Up to 135 mm	Up to 100 mm	Up to 70 mm

Dual Band Antenna:

The ProxmarkPro Dual Band Antenna includes one High Frequency (HF) and Low Frequency (LF) inductor along with tuning circuitry matched to the ProxmarkPro. It represents a compromise between read range and the convenience of not having to swap antennas. Using the Dual Band Antenna, there is no need to swap between LF and HF antennas in order to read tags targeting the LF and HF RFID bands.

The antenna is comprised of an on-board PCB trace HF antenna and a wound-wire LF antenna. The LF antenna is connected to the PCB via a JST 2-Pin connector to the board. The whole antenna is wrapped in black shrink wrap to keep everything solid in the field.

Read Range:

	High Frequency	Low Frequency
HID	N/A	Up to 135 mm	Up to 85 mm
EM4100	N/A	Up to 120 mm	Up to 85 mm
T5577	N/A	Up to 120 mm	Up to 85 mm
Mifare Ultralight	Up to 100 mm	N/A	Up to 80 mm
Mifare	Up to 95 mm	N/A	Up to 75 mm
Mifare	Up to 100 mm	N/A	Up to 80 mm
