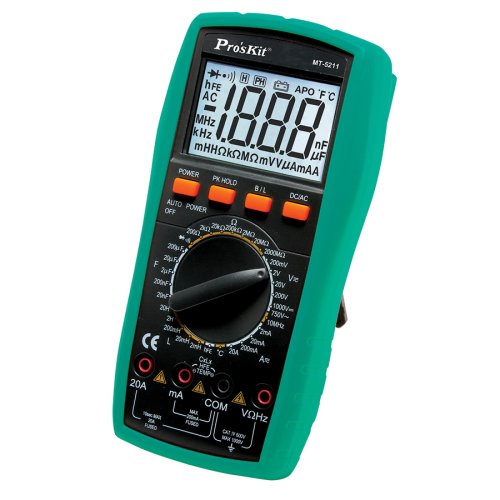

3 1/2 Digital LCR Multimeter.

Features:

• 3 1/2 digits 1999 counts.
• Dual slope A/D conversion.
• Large backlight LCD display.
• Extra functions: continuity with beeper, diode test, data hold, auto power off, low battery indication, over load indication, backlight, transistor tester.
• Ideal for a wide variety of electrical and electronic testing applications.

Specifications:

• DC Voltage (V): 200mV/2V/20V/200V±(0.5%+3d),1000V±(1.0%+5d)
• AC Voltage (V): 200mV±(1.2%+3d),2V/20V/200V±(0.8%+5d),750V±(1.2%+5d)
• DC Current (A): 2mA/20mA±(0.8%+3d),200mA±(1.2%+4d),20A±(2.0%+5d)
• AC Current (A): 2mA/20mA±(1.0%+5d),200mA±(2.0%+5d),20A±(3.0%+10d)
• Resistance (Ω):
• 200Ω±(0.8%+5d),2K/20K/200K/2MΩ±(0.8%+3d),
• 20MΩ±(1.0%+15d),2000MΩ±(5.0%(reading-10)+20d)
• Capacitance (uF): 20nF/200nF/2uF±(2.5%+20d),20uF/200uF±(5.0%+5d)
• Inductance (L): 2mH/20mH/200mH/2H/20H±(2.5%+20d)
• Temperature (T): (-20~1000˚C)<400˚C±(1.0%+4d) ,≧400˚C±(1.5%+15d)
• Frequency (Hz): 2k/20k/200k/2000K/10M Hz±(1.0%+10d)
• Power source: 9V 6F22 battery (Not included)
• Size(D×W×H) mm: 189×97.5×35mm

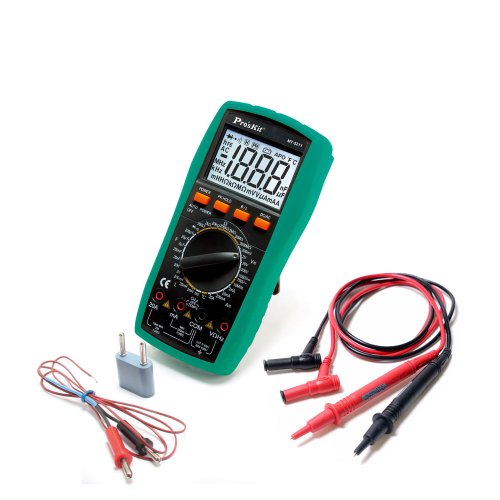

• Accessories: Test lead, thermocouple , test socket
• Individual Packing: Color box

Package Includes:

• 1 x 3 1/2 Digital LCR Multimeter
