Cut, crimp, strip – 3 in 1 function

Suitable for 8P8C/RJ45 / 6P2C/6P4C/6P6C/RJ11/RJ12 / 4P2C/4P4C/RJ-22 crimping

Cutting modular cable: Place the single-bladed side of the tool's cutter facing you and cut the modular cable to the desired length. Make sure to cut the ends of the cord straight across, not diagonally.

Stripping modular cable (Flat Cable):

  • 2a. Insert 4P/6P cable into the two-bladed side of the tool's stripper until it touches the stop guide.
  • 2b. Insert 8P cable into the two-bladed side of the tool's stripper and let it extend a little past the lower cut blade.

Squeeze handles until it stops cable must be kept perpendicular and then pull from the tool.

Stripping Round Cable Insert the cable into the round stripping hole, turn the crimper in counter clockwise direction and cable in clockwise at the same time.

Remove the outer jacket, insert the stripped cable into the plug and be sure the left wire at one and matches the right wire at the other end.

Place modular plug with cable into the tool's holder. Be sure the striped wire is between the tab and gold contacts. Squeeze handles until it stops.

4p holder is located on the back side of the tool.

Specifications:

  • Material: ABS+carbon steel
  • Application: 8P8C/RJ45, 6P2C/6P4C/6P6C RJ11 modular plugs, RJ-22 4P2C/4P4C handset modular plugs
  • Replacement blade: 5CP-376U-BLADE (6pcs/pack)
  • OAL.(mm): 160
  • Individual packing: Blister card

Package Includes:

  • 1 x Pro-Crimper Modular Tool (160mm)

Write a review

Please login or register to review

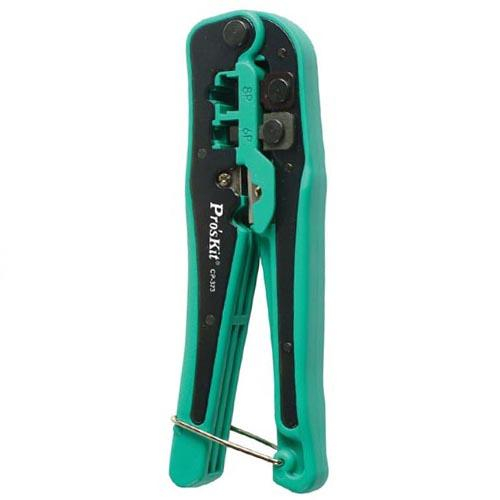

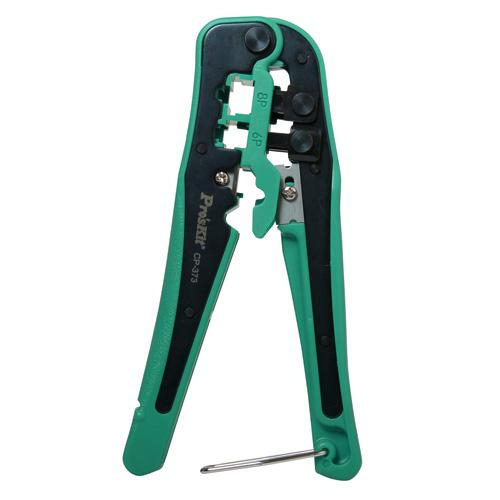

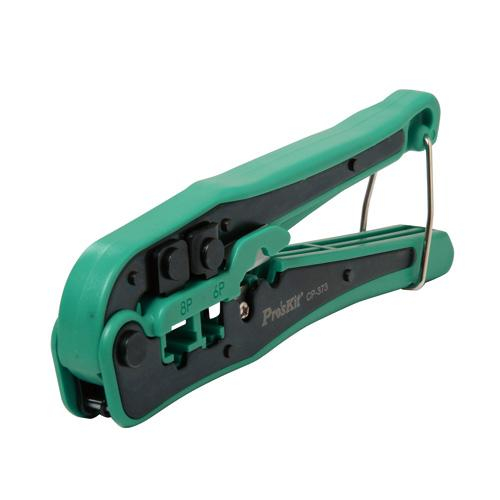

Pro-Crimper Modular Tool (160mm)

  • Brand: Pro'sKit
  • Product Code:NR-Pros-Pro-Crimper-160mm
  • Reward Points:14
  • Availability:In Stock
  • रo 1,460.00

  • Price in reward points:1460
