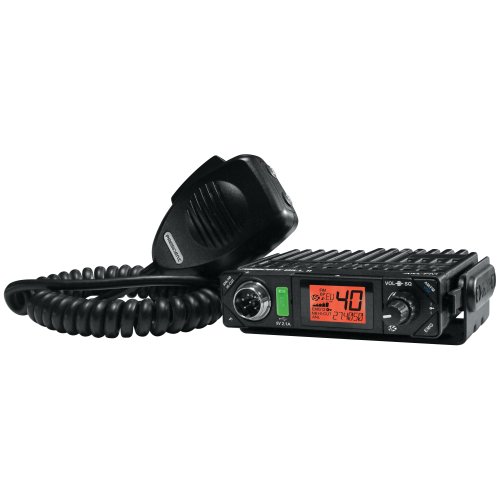

President BILL II ASC Citizen's Band Radio now in India..No license required !
Features:
- 40 channels AM / FM
- 12 V
- USB 5V / 2.1A
- Up/down channel selector
- Volume adjustment and ON/OFF
- Manual squelch and ASC
- Multi-functions LCD display
- S-meter
- ANL filter, NB, HI-CUT
- F function key
- Beep Function
- Roger Beep
- Mode switch AM / FM
- Preset channel programmable
- VOX
- Scan / Scan skip
- TOT (Time out timer)
- Front microphone plug
- Microphone Electret or Dynamic
- 40 channels AM / FM
- 12 V
- USB 5V / 2.1A
- Up/down channel selector
- Volume adjustment and ON/OFF
- Manual squelch and ASC
- Multi-functions LCD display
- S-meter
- ANL filter, NB, HI-CUT
- F function key
- Beep Function
- Roger Beep
- Mode switch AM / FM
- Preset channel programmable
- VOX
- Scan / Scan skip
- TOT (Time out timer)
- Front microphone plug
- Microphone Electret or Dynamic
- External loudspeaker jack
- External loudspeaker jack
Specifications:
- Supply: 13.2 V
- Number of channels: 40
- AM : Yes
- FM : Yes
- Channel selector : up / down
- Volume: Volume adjustment and ON/OFF
- Squelch: Manual squelch
- ASC : Yes
- Display: LCD multifunction
- Frequencies display: Yes
- S-meter: Digital
- Vox: Yes
- Filter ANL: Yes
- Filter NB: Yes
- Filter HI-CUT: Yes
- Scan: Yes
- F / Menu function key: Yes
- Key Beep: Yes
- Roger beep: Yes
- Key locking: Yes
- Preset channel : EMG (customizable)
- Microphone plug: front (6 pins)
- External loudspeaker jack: Yes
- Size: 102 (W) x 100 (D) x 25 (H) mm
Technical characteristics :
General :
- Number of channels: 40
- Modulation modes: AM / FM
- Frequency ranges: from 26.965 MHz to 27.405 MHz
- Antenna impedance: 50 ohms
- Power supply: 12 V
- Size: 102 (W) x 100 (D) x 25 (H) mm
- Weight: 320 g
- Accessories supplied:
- 1 microphone UP/DOWN and its hanger
- 1 mounting bracket with fixing screws
- 1 Quick support
Transmission :
- Frequency allowance: +/- 200 Hz
- Carrier power: 4 W AM / 4 W FM
- Transmission interference: inferior to 4 nW (- 54 dBm)
- Audio response: 300 Hz to 3 KHz
- Emitted power in the adj. channel: inferior a 20 μW
- Microphone sensitivity: 7 mV
- Drain: 1,7 A at 13,2 V
- Modulated signal distortion: 2 %
Reception :
- Maxi. sensitivity at 20 dB sinad: 0,5 µV - 113 dBm AM / 0,35 µV - 116 dBm FM
- Frequency response: 300 Hz to 3 kHz
- Adjacent channel selectivity: 60 dB
- Maximum audio power: 2.5 W
- Squelch sensitivity: mini 0.2 μV - 120 dBm / maxi 1 mV - 47 dBm
- Frequency image rejection rate: 60 dB
- Intermediate frequency rej. rate: 70 dB
- Drain: 180 ~ 500 mA (13,2 V)
Documentation:
Package Includes :
- 1 x CB Radio - BILL II ASC
CB Radio - BILL II ASC
- Brand: President Electronics
- Product Code:Pres-BILL-II-ASC
- Reward Points:79
- Availability:In Stock
-
रo 7,969.00
- Price in reward points:7969
