A small, portable, USB-connected electronics lab-on-a-board that includes an oscilloscope, waveform generator, power supply, logic analyzer, and multimeter.

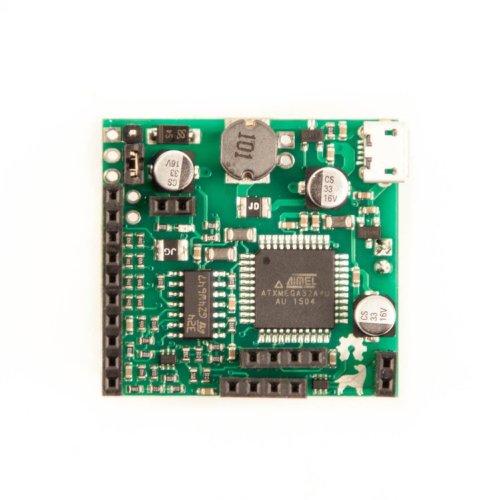

Introducing the Labrador !!

On-board is a complete arsenal of electronic engineering instruments: an oscilloscope, function generator, power supply, logic analyzer and multimeter. Yet, it’s as small as a flash drive and costs as much as a single Arduino shield.

A. Power Supply Outlets

B. Digital Output

C. Function Generator Outputs

D. Oscilloscope/Multimeter Inputs

E. Logic Analyzer Inputs

Electronics made accessible

These instruments are vital, and no professional engineer can practice their craft without them. Yet, until now, each instrument can cost hundreds of dollars, they are so bulky they require their own dedicated bench, and they are covered with so many knobs and dials that even experienced users are sometimes baffled.

The EspoTek Labrador changes all that by creating a new kind of lab. It has all the same instruments, but it’s different in three important ways. The Labrador is:

more affordable

much smaller

far easier to use

It’s an electronics lab you can slip into your pocket that costs a fraction of regular bench-top tools. So now, grad students living on lentils and rice, inventors working from a postage stamp-sized apartment, and the next generation of makers from every country on Earth can have access to all of the tools of the trade. Let’s take a detailed look at how the Labrador achieves this.

It’s easy to use

The EspoTek Labrador plugs directly into a solder-less breadboard and connects to any Windows, Mac, or Linux computer via microUSB. A custom software interface lets you see and interact with your waveforms on-screen. Careful planning and a lot of work has been put into making the interface intuitive for those new to electronics, while keeping it powerful for those familiar with the instruments. Experienced engineers, don’t fear - you can do things like manually adjust the ADC gain and UART parameters. These kinds of function have just been moved away from the main screen, keeping things clean and simple for newer users.

It’s affordable

From day one, the goal of the Labrador project has been to produce a tool that everyone could afford, from an unpaid intern in San Francisco to a high school student in São Paulo. Multiple revisions have been made over the past year and a half, with every component being carefully selected to deliver performance and reliability while keeping costs down. Whole designs have been scrapped and components ripped off of live boards, and the net result speaks for itself. Labrador is the most affordable electronics lab in the world.

It’s very, very small

Labrador is tiny. The current prototype measures up at 31mm x 38mm x 23mm and weighs just 10g. The next prototype will be even smaller. Suffice to say, Labrador doesn’t eat up your apartment’s precious storage space and can be taken with you anywhere you go. Debugging robots on the train, anyone?

It’s fully Open Source

All software is licenced under the GPL, and all hardware under Creative Commons. This makes it possible for you to improve or extend your Labrador in any way you want - and then share this with the growing open source community.

Labrador is for makers.

Labrador takes the instruments that professional engineers use every day and makes them accessible to everyone. This includes makers. Below are a few of the ways that makers can take advantage of these tools.

Debug

Debugging a circuit without a scope can be a nightmare. There’s no way of seeing what’s going on. It is not fun. It is not challenging. It’s just frustrating. The EspoTek Labrador fixes this. As a low-cost, portable, easy-to-use oscilloscope, Labrador lets you see what’s going on at any point in your circuit. This makes fast, effective debugging possible without a four-year degree and $500 of equipment. Makers can spend more time making and less time plugging wires into random holes and hoping it works.

Experiment

It’s possible to understand how any electronic component or circuit works, as long as you have two tools: a signal generator and an oscilloscope. The EspoTek Labrador provides both of these in a single package, letting you run experiments on real hardware. The results may surprise you!

Labrador is for students.

If you’ve been studying engineering for more than about 6 weeks, you already know just how useful a lab bench is. This is how useful a $25, portable, all-in-one lab bench is.

Work when you’re out of the lab

Labrador is a lab for when you’re out of the lab. You can work on your projects wherever you are: on the bus, in your dorm room, or stuck in a lecture on weaving imagery in medieval German literature. Of course, Labrador isn’t the first product to offer a portable version of a lab instrument, but it is the first that ships to every country on Earth for $25, weighs just 10g, and comes with a full suite of tools on-board.

Gain experience

Being able to work independently on projects in your spare time will give you all kinds of experience that you just can’t get in a classroom - the type of hands-on problem solving experience that employers look for. If you spend your summer break building a robot and then bring that robot to a couple of interviews, you will have no trouble finding a job. If you give up because you lack access to debugging tools and instead bring along your 2200 CP Charizard, job hunting will be more challenging.

A fraction of the cost of a degree

An engineering degree at MIT costs roughly US$200,000. Labrador is $25. You don’t need to be an engineer to see the value in that. As a bonus, you could use Labrador to help you study for your degree at MIT.

Technical Specifications

Please note that these specifications represent the typical performance of the current prototypes and may be subject to some slight changes in future.

Specs at a Glance:

Oscilloscope (2 channel, 750ksps)

Arbitrary Waveform Generator (2 channel, 1MSPS)

Power Supply (4.5 to 15V, 1.5W max, closed-loop)

Logic Analyzer (2 channel, 3MSPS per channel, with serial decoding)

Multimeter (V/I/R/C)

Software compatible with Windows, OSX, and Linux

Full specs

Oscilloscope	Sample Rate	750ksps (shared)
	Bits per Sample	8, 12¹
	Bandwidth	~100kHz²
	Input Voltage Range	-20V to +20V
	Input Impedance	1 MΩ
	No. of Channels	2
	Coupling	AC/DC
Arbitrary Waveform Generator	Waveform types	Sin, Square, Triangle, Sawtooth, Arbitrary
	Sample Rate	1Msps
	Sample Depth	64 samples (CH1), 1500 samples (CH2)
	Output voltage range	0.15V to 9.5V
	Bits per Sample	8
	Max. Current	10mA³
	Output Resistance	50Ω
	No. of Channels	2
Variable Power Supply	Voltage Range	4.5V to 15V
	Max. Power	~1.5W
	No. of Outputs	1
	Source Impedance	Negligible⁴
	Ripple Voltage	+-300mV%@10V 10mA, +-700mV%@10V 100mA
Logic Analyzer	Sample Rate	3Msps per channel
	Supported voltage	3.3V, 5V, 12V
	No. of Channels	2
Digital Output	Voltage	3.3V
	Source Impedance	50Ω
Multimeter⁵	Input Impedance	1MΩ
	Measured Parameters	V, I, R, C
	Voltage Range	-20V to +20V
	Current Range	100uA to 10A
	Resistance Range	1 ohm to 100k
	Capacitance Range	10pf to 1mf

¹ - 12-bit sampling is available at 375ksps, single-channel only.

² - This figure is an approximate “maximum detectable frequency” dictated by the sample rate.

³ - This figure is for source current. Current is sunk partially into the opamp driving the signal gen and partially into a 1k resistor. Thus, maximum sink current can be calculated by dividing the output voltage by 1k and adding 50µA. This configuration was chosen so that capacitive loads could be driven without significant nonlinearities. In simpler terms, this means that if you’re trying to drive current into the waveform generator through use of an external current source, then the maximum current that the waveform generator can handle is reduced. (This is not something that would be an issue for most people.)

⁴ - The Power Supply is controlled by a closed-loop feedback loop that ensures the DC voltage across output remains constant. Thus, it has nonlinear elements, but can still be approximated by a Thévenin circuit with Vth = Vo and Rth = 0.

⁵ - Multimeter ranges vary with reference resistor used.

Plans for the future

The software is in beta. Some features are missing, some bugs are present and this will all need to be cleaned up prior to launch. Six weeks of solid coding will be needed to finish this job to a high standard, plus another two to test. The Labrador hardware is already in its fifth revision, but even further refinement will be made before any units are shipped to the public. Specifically, a 3.3V output will be added, the inductor and diode will be shrunk down to SMD packages, and, if time permits, any stretch goals will need to be implemented. Extensive testing will also be undertaken, and if an error is found it will need to be removed. Testing is expected to take around 4 weeks.

Once the hardware has been thoroughly tested, and the software developed enough to facilitate testing, the boards will need to be manufactured. Quotes have already been sourced from several manufacturers, all with lead times of approximately 3-4 weeks.

Development will still continue while the campaign is live, so you can expect the first Labradors to start shipping by early December.

Risks and challenges

Multiple prototypes have been produced using low-cost parts, and quotes that detail the full cost of manufacturing have already been sourced. Labrador works and is feasible to produce. However, there is still a risk of the project being delayed. Bugs could be found during testing that take longer than expected to fix. Human error during the manufacturing process, on either side, could lead to the 3-4 week lead time being increased. Component sourcing issues could also arise, but are unlikely to hold up the project for months on end since all parts can be substituted. Backers will be notified of any issues that could cause delays.
