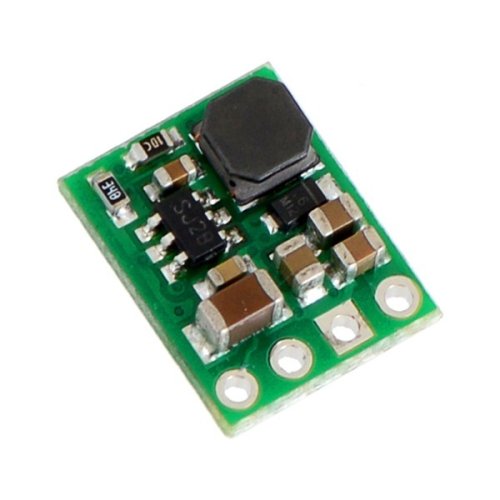

These buck (step-down) voltage regulators generate lower output voltages from input voltages as high as 42 V. They are switching regulators (also called switched-mode power supplies (SMPS) or DC-to-DC converters) and have a typical efficiency between 80% to 90%, which is much more efficient than linear voltage regulators, especially when the difference between the input and output voltage is large. This regulator is available with a fixed 3.3 V, 5 V, 9 V, or 12 V output.

Features:

Input voltage: [output voltage + dropout voltage] to 42 V (see below for more information on dropout voltage)
Fixed 3.3 V, 5 V, 9 V, or 12 V output (depending on regulator version) with 4% accuracy
Maximum output current: 300 mA or 600 mA (depending on regulator version)
1.25 MHz switching frequency
2 mA typical no-load quiescent current (20 μA typical quiescent current with SHDN = LOW)
Integrated over-temperature and over-current shutoff

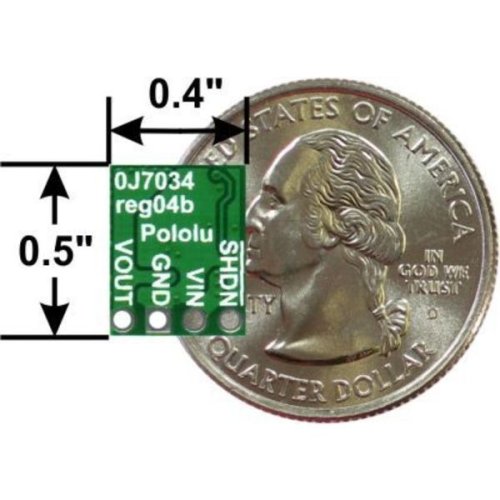

Small size: 0.5″ × 0.4″ × 0.1″ (13 mm × 10 mm × 3 mm)

Specifications:

Documents:

Drill guide

Package Includes:

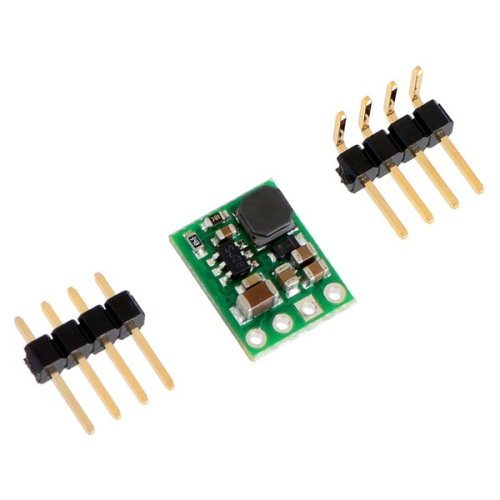

1 x Pololu 2106 / 2107 / 2108 / 2109 Step-Down Voltage Regulator D24V6Fx - 600mA

Electrical Specifications
Minimum Operating Voltage	2106-3.8V, 2107-6.0V, 2108-10.5V, 2109-14V
Maximum Operating Voltage	42V
Physical Attributes
Weight	0.5g
Dimensions	0.4″ × 0.5″ × 0.1″
Additional Information
Warranty

Pololu 2106 / 2107 / 2108 / 2109 Step-Down Voltage Regulator D24V6Fx - 600mA

Brand: Pololu
Product Code:Pololu-D24V6Fx-600mA
Reward Points:5
Availability:In Stock

रo 549.00
रo 527.00
Price in reward points:549
25 or more रo 529.00
96 or more रo 501.00
140 or more रo 497.00
250 or more रo 483.00

Available Options

Voltage

3) 12V

5) 9V

9) 3.3V

56) 5v

Qty

0 reviews / Write a review
