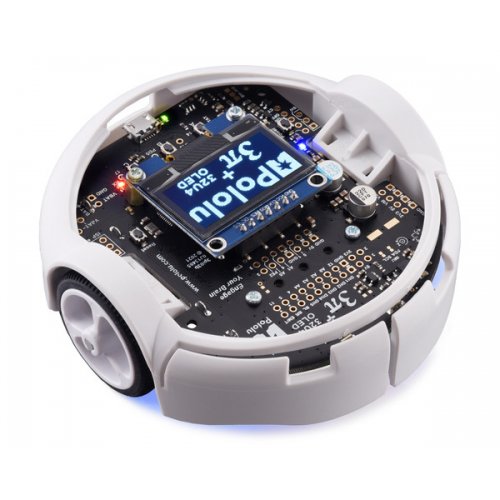

The Pololu 3pi+ 32U4 OLED robot is a complete, high-performance mobile platform based on the Arduino-compatible ATmega32U4 MCU, and this kit contains all the parts you need to build the Hyper Edition version / Standard version / Turtle Edition version, including a pair of 15:1 / 30:1 / 75:1 LP 6V Micro Metal Gearmotors. The many features of the 3pi+ include dual quadrature encoders for closed-loop speed or position control, line sensors, front bump sensors, a full IMU (3-axis accelerometer, magnetometer, and gyro), and a graphical OLED display, all packed into a robot that can fit within the palm of your hand.

The 3pi+ features two H-bridge motor drivers and a variety of integrated sensors, including a pair of quadrature encoders for closed-loop motor control, a complete inertial measurement unit (3-axis accelerometer, gyro, and magnetometer), five downward-facing reflectance sensors for line-following or edge-detection, and left and right bump sensors along the front face of the robot. Three on-board pushbuttons offer a convenient interface for user input, and a 128×64 graphical OLED display, buzzer, and indicator LEDs allow the robot to provide feedback.

Specifications:

• Hyper Edition - 15:1
• Standard Edition - 30:1
• Turtle Edition - 75:1

Documents:

• User guide
• Schematic diagram
• Dimension diagram
• Pinout and power distribution diagram

Package Includes:

• 1 x Pololu 4974 / 4975 / 4976 3pi+ 32U4 OLED Robot - Assembled
