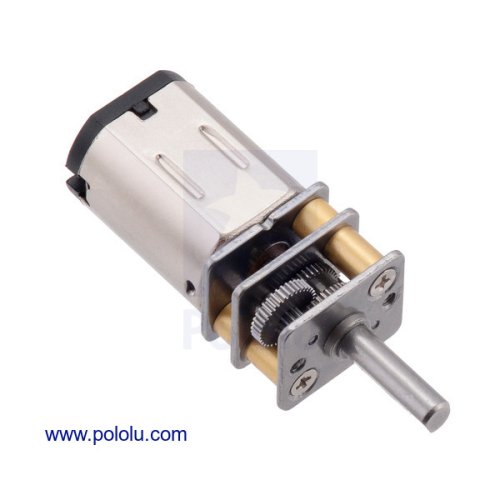

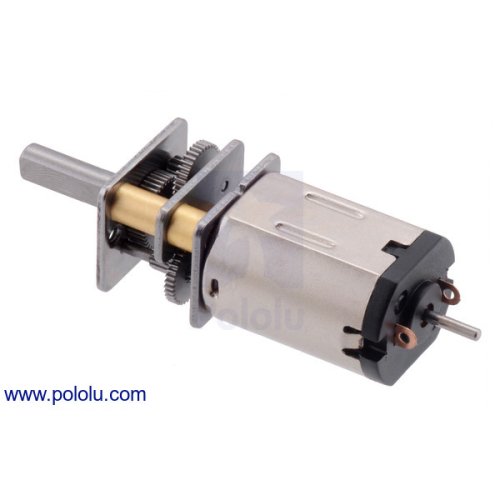

This gearmotor is a miniature high-power, 12 V brushed DC motor with long-life carbon brushes and a 379.17:1 metal gearbox. This version has stainless steel gearbox plates instead of the standard brass ones for increased durability and resistance to wear from radial loads. It has a cross section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter. This version also has a 4.5 × 1 mm extended motor shaft.
These tiny brushed DC gearmotors are available in a wide range of gear ratios—from 5:1 up to 1000:1—and with five different motors: high-power 6 V and 12 V motors with long-life carbon brushes (HPCB), and high-power (HP), medium power (MP), and low power (LP) 6 V motors with shorter-life precious metal brushes. The 6 V and 12 V HPCB motors offer the same performance at their respective nominal voltages, just with the 12 V motor drawing half the current of the 6 V motor. The 6 V HPCB and 6 V HP motors are identical except for their brushes, which only affect the lifetime of the motor.

Specifications:

Gear ratio 379.17:1
No-load speed @ 12V 85 rpm
No-load current @ 12V 0.06 A
Stall current @ 12V 0.75 A
Stall torque @ 12V 5.0 kg·cm
Max output power @ 12V 1.1 W
No-load speed @ 6V 43 rpm
No-load current @ 6V 0.05 A
Stall current @ 6V 0.38 A
Stall torque @ 6V 2.5 kg·cm
Long-life carbon brushes? Yes
Motor type
0.75A stall @ 12V (HPCB 12V - carbon brush)


Documents:

Package Includes:

  • 1 x Pololu 4798 / 4799 380:1 Micro Metal Gearmotor HPCB 12V
Motor Specifications
Type HPCB Micro Metal Gearmotor
Speed (RPM) 85rpm
Torque 5.0 kg·cm
Gear Ratio 379.17:1
Shaft Diameter 3mm
Electrical Specifications
Maximum Operating Voltage 12V
Minimum Operating Current 0.75 A
Physical Attributes
Weight 9.5g
Dimensions 10 × 12 × 26 mm
Additional Information
Warranty

Write a review

Please login or register to review

Pololu 4798 / 4799 380:1 Micro Metal Gearmotor HPCB 12V

  • Brand: Pololu
  • Product Code:Pololu-4798-9-Gearmotor-12V
  • Reward Points:19
  • Availability:In Stock
  • रo 1,934.00

  • Price in reward points:1934

  • 5 or more रo 1,886.00
  • 8 or more रo 1,871.00
  • 15 or more रo 1,855.00
  • 40 or more रo 1,840.00
  • 75 or more रo 1,825.00
