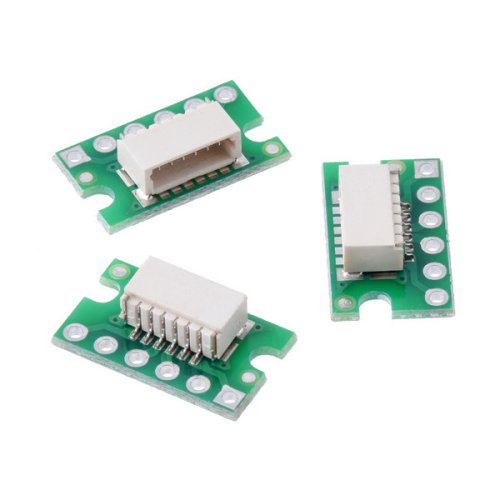

This is a breakout board for a 6-pin male JST SH-type connector that provides access to each pin on a row of 0.1″-pitch through holes, making it compatible with standard solderless breadboards. The through-holes work with standard 0.1″ (2.54 mm) male headers and 0.1″ female headers, which are available separately.
This board can be used with our Micro Metal Gearmotor Encoder with top-entry connector or with side-entry connector, along with a female-female JST SH-style cable (available in 10 cm, 16 cm, 25 cm, 40 cm, and 63 cm lengths). When used this way, the breakout provides convenient access to the motor and encoder pins on a breadboard, and the pins are labeled on the board’s bottom silkscreen with this application in mind.

Compatible cables:
Documents:
Warranty:
  • Warranty will not apply if Product fails or is damaged after delivery to you due to accident, abuse or misuse.
Package Includes:
  • 1 x Pololu 4773 / 4771 Breakout for JST SH-Style Connector-( 3-Pack )
Physical Attributes
Weight 0.5g
Dimensions 0.6″ × 0.35″ × 0.16″
Additional Information
Warranty

Write a review

Please login or register to review

Pololu 4773 / 4771 Breakout for JST SH-Style Connector-( 3-Pack )

  • Brand: Pololu
  • Product Code:Pololu-4773-4771-Breakout
  • Reward Points:2
  • Availability:In Stock
  • रo 204.00

  • Price in reward points:204

  • 25 or more रo 195.00
  • 100 or more रo 186.00
  • 250 or more रo 178.00
  • 500 or more रo 174.00
