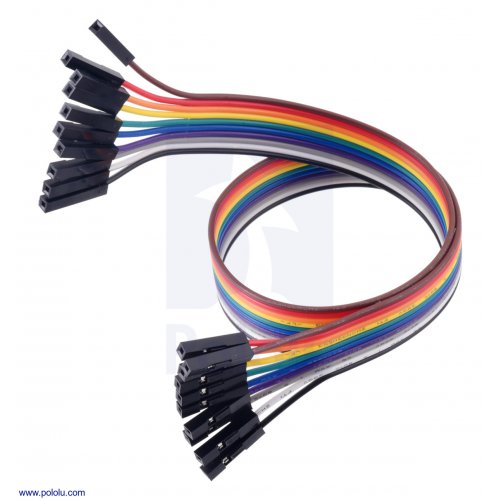

Ribbon Cable Premium Jumper Wires 10-Color F-F 12" (30 cm)

These 12″ (30 cm) premium jumper wires are made from 26 AWG stranded copper ribbon cable with female connectors on both ends that work with 0.1″ (2.54 mm) male headers and connectors. There are ten total wires, each a different color, and individual wires or groups of wires are easy to peel apart.

• Alternatives available with variations in these parameter(s): gender length color Select variant…

• We also have versions of these wires without housings on the crimp connectors that can be used with our selection of 0.1″ crimp connector housings to make custom cables. For more information, see our wires with pre-crimped terminals, or use the following selection boxes:


Details for item #4566:

This product is 12″ (30 cm) long with female connectors on both ends.

Details for item #4567:

This product is 12″ (30 cm) long with male connectors on one end and female connectors on the other end.

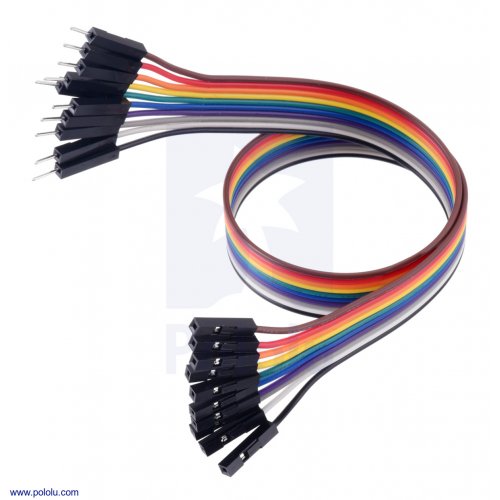

Ribbon Cable Premium Jumper Wires 10-Color M-F 12" (30 cm)

These 12″ (30 cm) premium jumper wires are made from 26 AWG stranded copper ribbon cable with male connectors on one end and female connectors on the other end, that work with 0.1″ (2.54 mm) headers, connectors, and solderless breadboards. There are ten total wires, each a different color, and individual wires or groups of wires are easy to peel apart.

• Alternatives available with variations in these parameter(s): gender length color Select variant…

• We also have versions of these wires without housings on the crimp connectors that can be used with our selection of 0.1″ crimp connector housings to make custom cables. For more information, see our wires with pre-crimped terminals, or use the following selection boxes:

Details for item #4568:

This product is 12″ (30 cm) long with male connectors on both ends.

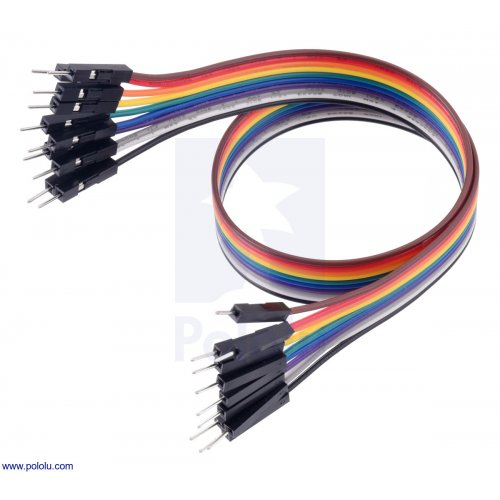

Ribbon Cable Premium Jumper Wires 10-Color M-M 12" (30 cm)

These 12″ (30 cm) premium jumper wires are made from 26 AWG stranded copper ribbon cable with male connectors on both ends that work with 0.1″ (2.54 mm) female headers, connectors, and solderless breadboards. There are ten total wires, each a different color, and individual wires or groups of wires are easy to peel apart.

• Alternatives available with variations in these parameter(s): gender length color Select variant…

• We also have versions of these wires without housings on the crimp connectors that can be used with our selection of 0.1″ crimp connector housings to make custom cables. For more information, see our wires with pre-crimped terminals, or use the following selection boxes:

Premium jumper wire family overview:

These premium 26 AWG stranded copper jumper wires are great for making quick and easy prototyping connections. A variety of lengths and colors are available:

length single-color packs multi-color option

1″ (2.5 cm) 6 colors available 60-pack (10 each of 6 colors)

2″ (5 cm) 6 colors available 60-pack (10 each of 6 colors)

3″ (7.5 cm) 6 colors available 10-wire, 10-color ribbon cable

6″ (15 cm) 10 colors available 10-wire, 10-color ribbon cable

12″ (30 cm) 10 colors available 10-wire, 10-color ribbon cable

24″ (60 cm) not available* 10-wire, 10-color ribbon cable

You can make your own 24″ single-color packs by getting single-color packs of our 24″ wires with pre-crimped terminals and adding 1×1 crimp connector housings to them.

Pololu Ribbon Cable Premium Jumper Wires are available in four lengths: 3″ (7.5 cm), 6″ (15 cm), 12″ (30 cm), and 24″ (60 cm).

Ribbon Cable Premium Jumper Wires are easy to peel apart (6″ M-F version shown).

These wires are available with male connectors on both ends, female connectors on both ends, or one male and one female connector. These connectors are designed for use with 0.1″ (2.54 mm) male headers and female headers, solderless breadboards, and prototyping PCBs. Close-up pictures of the male and female connectors are shown below:

Premium Jumper Wire male end.                               Premium Jumper Wire female end.

You can use the following selection boxes to get to the specific wires you are looking for:

Alternatives available with variations in these parameter(s): gender length color Select variant…

Ribbon Cable with Pre-Crimped Terminals male end.    Ribbon Cable with Pre-Crimped Terminals female end.

We also have versions of these wires without the 1×1 connector housings, as shown in the two pictures above, that can be used with our selection of 0.1″ crimp connector housings to make custom cables or longer premium jumper wires. For more information, see our Wires with Pre-Crimped Terminals, or use the following selection boxes:

Alternatives available with variations in these parameter(s): gender length color Select variant…

Example of a custom cable made with wires with pre-crimped terminals and crimp connector housings.
