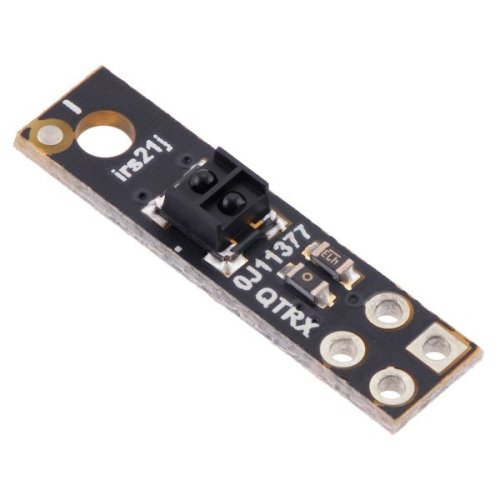

This IR LED/phototransistor pair is great for precisely identifying changes in reflectance (like line detection). It operates from 2.9 V to 5.5 V and offers dimmable brightness control independent of the supply voltage. In general, the closer the object, the higher the contrast between light and dark readings, but high-reflectance objects are generally detectable out to around 30 mm. This version features a high-performance, low-current QTRX sensor with lenses.
Specifications:
  • Maximum range: 30 mm
  • Optimal range: 10 mm
  • Minimum operating voltage: 2.9 V
  • Maximum operating voltage: 5.5 V
  • LED current: 3.5 mA
  • Peak wavelength: 940 nm
  • Maximum current draw: 5 mA
  • Sensor type: QTRX
  • Sensor count: 1
  • Output type: A (analog voltages)

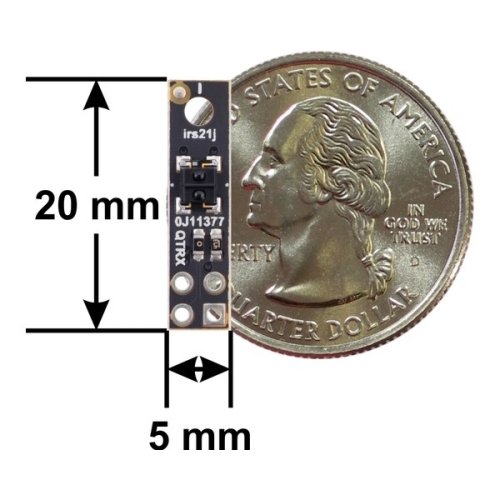

  • Size: 5.0 × 20.0 × 4.4 mm
  • Weight: 0.25 g
Documents:
Package Includes:
  • 1 x Pololu 4401 QTRX-HD-01A Reflectance Sensor: 1-Channel, 5mm Wide, Analog Output, Low Current
Electrical Specifications
Minimum Operating Voltage 2.9 V
Maximum Operating Voltage 5.5V
Physical Attributes
Weight 0.25 g
Dimensions 5.0 × 20.0 × 4.4 mm

Write a review

Please login or register to review

Pololu 4401 QTRX-HD-01A Reflectance Sensor: 1-Channel, 5mm Wide, Analog Output, Low Current

  • Brand: Pololu
  • Product Code:Pololu-4601-QTRXL-HD-01A
  • Reward Points:3
  • Availability:In Stock
  • रo 265.00

  • Price in reward points:265

  • 5 or more रo 252.00
  • 25 or more रo 241.00
  • 60 or more रo 239.00
  • 100 or more रo 230.00
  • 250 or more रo 224.00
