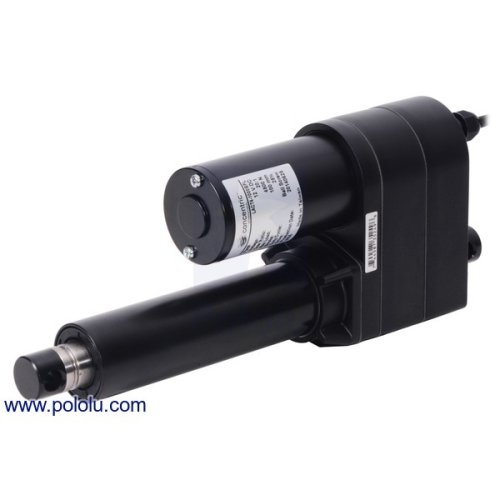

The Industrial-Duty (ID) series of Glideforce linear actuators by Concentric International (formerly Iowa Export-Import) are powerful 12V DC gearmotors that use an acme screw drive or ball screw drive to move a shaft back and forth along its length. The shaft will hold its position even when unpowered. The versions with acme screw drives (part number LACTx-500Ax) can move loads up to 250 kgf [550 lbs or 2500 N] and withstand static loads up to 450 kgf [1000 lbs or 4500 N], while versions with more efficient ball screw drives (part number LACTx-1000Bx) can move loads up to 450 kgf [1000 lbs or 4500 N] and withstand static loads up to 1360 kgf [3000 lbs or 13,600 N].

Two limit switches safely stop the motor at either end of its range, while integrated diodes allow it to reverse direction after reaching a limit point if the supplied voltage is reversed, and a built-in overload clutch protects the actuator from excessive dynamic loads. The actuators have an all-steel frame and extension tube, and the entire case is sealed to protect against dust and water.

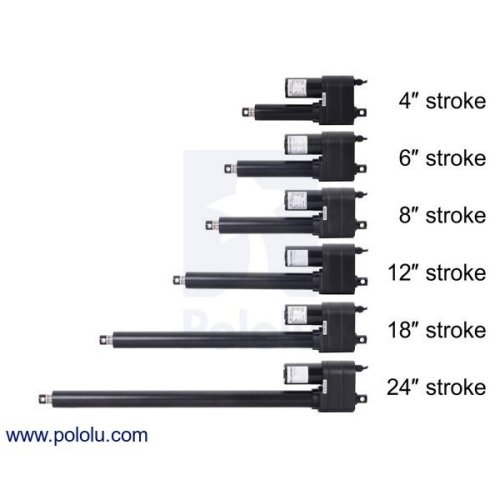

These actuators are available in a variety of stroke lengths, from 4″ to 24″, and with optional potentiometers that are linked to the shaft position

• Nominal operating voltage: 12 V
• Speed at 12 V, no load: 0.66 in/s [16.8 mm/s]
• Speed at 12 V, max load: 0.56 in/s [14.3 mm/s]
• Standard preset limit switches at both ends of stroke
• Overload clutch
• All steel frame and extension tube
• Aluminum gearbox housing
• Ball screw version has stainless steel extension tube
• All metal gears
• Noise level: ≤ 70 dB
• Mounting hole diameter: 1/2″ [13 mm]
• Working temperature: -13°F [-25°C] to 149°F [65°C]
• IP rating: IP65 (total dust protection, water resistant)

• Nominal stroke length: 4″ [10.2 cm]
• Actual stroke length: 3.50″ [8.9 cm]
• Retracted length: 12.05″ [30.6 cm] (from mounting hole to mounting hole)
• Extended length: 15.55″ [39.5 cm] (from mounting hole to mounting hole)
• Weight: 9 lb [4 kg]
• Gear ratio: 20:1 (standard)
• Acme screw drive
• Rated dynamic load capacity: 550 lbs [250 kgf or 2500 N]
• Maximum static load: 1000 lbs [450 kgf or 4500 N]
• This version does not have a feedback potentiometer

• Nominal stroke length: 6″ [15.2 cm]
• Actual stroke length: 5.51″ [14.0 cm]
• Retracted length: 14.06″ [35.7 cm] (from mounting hole to mounting hole)
• Extended length: 19.57″ [49.7 cm] (from mounting hole to mounting hole)
• Weight: 9 lb [4 kg]
• Gear ratio: 20:1 (standard)
• Acme screw drive
• Rated dynamic load capacity: 550 lbs [250 kgf or 2500 N]
• Maximum static load: 1000 lbs [450 kgf or 4500 N]
• This version does not have a feedback potentiometer

• Nominal stroke length: 8″ [20.3 cm]
• Actual stroke length: 7.52″ [19.1 cm]
• Retracted length: 16.06″ [40.8 cm] (from mounting hole to mounting hole)
• Extended length: 23.58″ [59.9 cm] (from mounting hole to mounting hole)
• Weight: 10 lb [4.5 kg]
• Gear ratio: 20:1 (standard)
• Acme screw drive
• Rated dynamic load capacity: 550 lbs [250 kgf or 2500 N]
• Maximum static load: 1000 lbs [450 kgf or 4500 N]
• This version does not have a feedback potentiometer

• Nominal stroke length: 12″ [30.5 cm]
• Actual stroke length: 11.54″ [29.3 cm]
• Retracted length: 20.08″ [51.0 cm] (from mounting hole to mounting hole)
• Extended length: 31.61″ [80.3 cm] (from mounting hole to mounting hole)
• Weight: 11 lb [5 kg]
• Gear ratio: 20:1 (standard)
• Acme screw drive
• Rated dynamic load capacity: 550 lbs [250 kgf or 2500 N]
• Maximum static load: 1000 lbs [450 kgf or 4500 N]
• This version does not have a feedback potentiometer

• Nominal stroke length: 18″ [45.7 cm]
• Actual stroke length: 17.56″ [44.6 cm]
• Retracted length: 29.02″ [73.7 cm] (from mounting hole to mounting hole)
• Extended length: 46.57″ [118.3 cm] (from mounting hole to mounting hole)
• Weight: 13 lb [6 kg]
• Gear ratio: 20:1 (standard)
• Acme screw drive
• Rated dynamic load capacity: 550 lbs [250 kgf or 2500 N]
• Maximum static load: 1000 lbs [450 kgf or 4500 N]
• This version does not have a feedback potentiometer

• Nominal stroke length: 24″ [61.0 cm]
• Actual stroke length: 23.58″ [59.9 cm]
• Retracted length: 35.04″ [89.0 cm] (from mounting hole to mounting hole)
• Extended length: 58.62″ [148.9 cm] (from mounting hole to mounting hole)
• Weight: 15 lb [7 kg]
• Gear ratio: 20:1 (standard)
• Acme screw drive
• Rated dynamic load capacity: 550 lbs [250 kgf or 2500 N]
• Maximum static load: 1000 lbs [450 kgf or 4500 N]
• This version does not have a feedback potentiometer

• ID Series datasheet

• 1 x Glideforce LACT4/6/8/12/18/24-500AL Industrial-Duty Linear Actuator with Acme Drive - 12V
