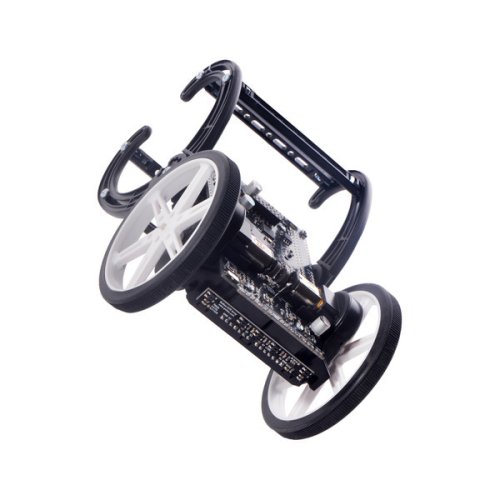

The 5-Channel Reflectance Sensor Array for Balboa provides an easy way to add line sensing to the Balboa 32U4 Balancing Robot. It features five separate reflectance sensors, each consisting of a dimmable IR emitter coupled with a phototransistor that responds based on how much emitter light is reflected back to it. The array is intended for Balboas assembled with 80×10mm wheels that are operating in upright (balancing) orientations.

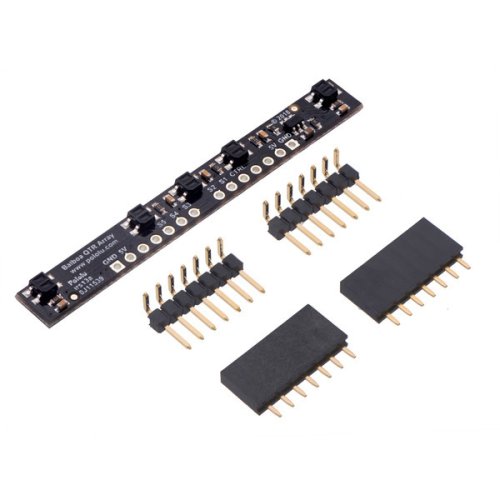

Included components:
The 1×7 female headers should be soldered to the connections near the bottom edge of the control board. You can do this without removing your Balboa control board from the chassis. One female header should be soldered between the pins labeled GND and A3, and the other female header should be soldered between the pins labeled GND and A2. The solder joints should be on the component side of the control board.

Documents:
Package Includes:
  • 1 x Pololu 3577 5-Channel Reflectance Sensor Array for Balboa 32U4 Balancing Robot

Write a review

Please login or register to review

Pololu 3577 5-Channel Reflectance Sensor Array for Balboa 32U4 Balancing Robot

  • Brand: Pololu
  • Product Code:Pololu-3577-Reflectance
  • Reward Points:5
  • Availability:In Stock
  • रo 487.00

  • Price in reward points:487

  • 25 or more रo 474.00
  • 30 or more रo 470.00
  • 60 or more रo 466.00
  • 150 or more रo 463.00
  • 300 or more रo 459.00
