The FT5335M is a giant-scale (also called 1/4-scale or mega-scale) digital servo from FEETECH that can deliver more than twice the torque of our strongest standard-size servo, offering up to 550 oz-in at 7.4V or 480 oz-in at 6 V (if you need even more torque than this, check out the much larger Torxis monster servos, and if you need a lot of torque in a smaller size or with more speed, consider the FT5121M and FT5313M high-torque digital servos). The picture on the right shows how the giant-size FT5335M compares to a standard-size servo.

The FT5335M works with standard RC servo pulses, providing a running angle of approximately 120° over a servo pulse range of 900 µs to 2100 µs.

This servo has a 12″ (30 cm) cable that is terminated with a standard Futaba J connector. Unlike typical hobby servos, the FT5335M has an operating voltage range of 6 V to 7.4 V.

Specifications:

• Digital?: Y
• Speed @ 7.4V: 0.18 sec/60°
• Stall torque @ 7.4V: 40 kg·cm
• Speed @ 6V: 0.20 sec/60°
• Stall torque @ 6V: 35 kg·cm
• Hardware included?: Y
• Lead length: 12 in

Documents:

• Datasheet

Warranty:

• Warranty will not apply if Product fails or is damaged after delivery to you due to accident, abuse or misuse.

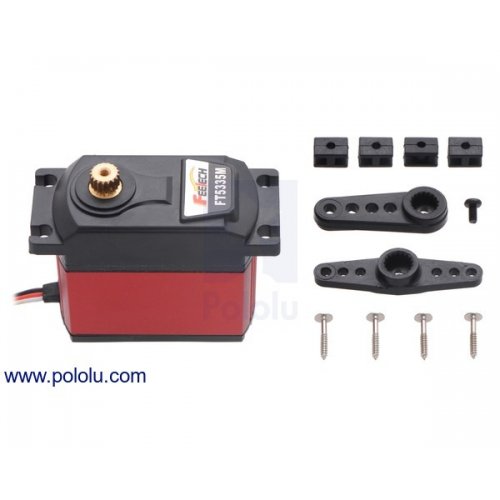

Package Includes:

• 1 x Pololu 3429 FEETECH Ultra-High-Torque, High-Voltage Digital Giant Servo FT5335M
