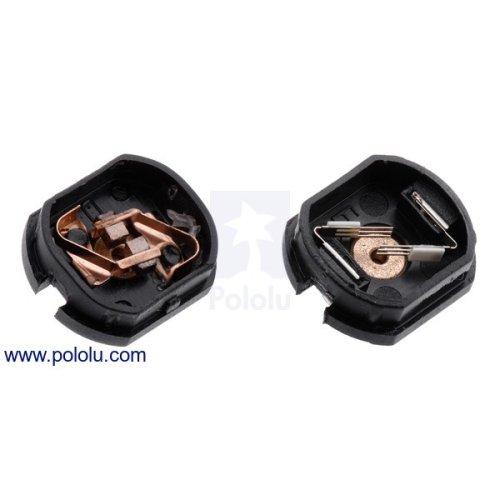

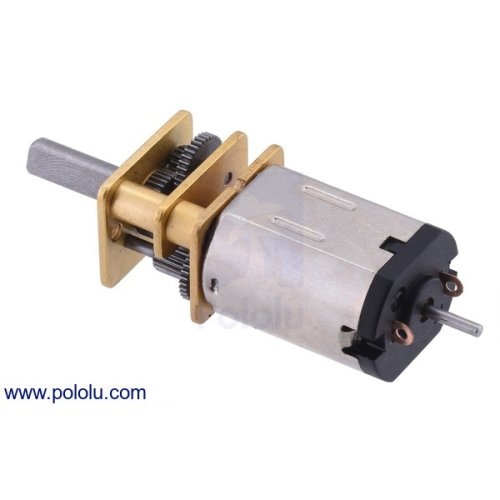

These tiny brushed DC gearmotors are available in a wide range of gear ratios—from 5:1 up to 1000:1—and with five different motors: high-power 6 V and 12 V motors with long-life carbon brushes (HPCB), and high-power (HP), medium power (MP), and low power (LP) 6 V motors with shorter-life precious metal brushes. The 6 V and 12 V HPCB motors offer the same performance at their respective nominal voltages, just with the 12 V motor drawing half the current of the 6 V motor.

Specifications:
Documents:

Note:

  • Output shafts add 14 mm to the 29.5 mm length.
  • D shaft.
  • This is a theoretical value; stalling the gearbox output shaft will damage the gearbox

Package Includes:

  • 1 x Pololu 3082/3071/4787/3072/3073/3074/3075/3076/3077/3078/3079/3080 Micro Metal Gearmotor HPCB - 6V



Motor Specifications
Type Brushed Micro Metal Gearmotor HPCB
Speed (RPM) 3082-6500, 3071-3300, 4787-2100, 3072-1100, 3073-650, 3074-430, 3075-330, 3076-220, 3077-160, 3078-130, 3079-110, 3080-85
Torque 3082-0.09kg.cm, 3071-0.17kg.cm, 4787-0.25kg.cm, 3072-0.45kg.cm, 3073-0.74kg.cm, 3074-1.1kg.cm, 3075-1.6kg.cm, 3076-2.0kg.cm, 3077-2.8kg.cm, 3078-3.2kg.cm, 3079-3.4kg.cm, 3080-11kg.cm
Gear Ratio 3082-5:1, 3071-10:1, 4782-15:1, 3072-30:1, 3073-50:1, 3074-75:1, 3075-100:1, 3076-150:1, 3077-210:1, 3078-250:1, 3079-298:1, 3080-1000:1
Shaft Diameter 3mm
Electrical Specifications
Maximum Operating Voltage 6V
Minimum Operating Current Stall Current: 1.5A, No-Load current: 0.1A
Physical Attributes
Weight 9.5g
Dimensions 10×12×26 mm
Additional Information
Warranty

Write a review

Please login or register to review

Pololu 3082/3071/4787/3072/3073/3074/3075/3076/3077/3078/3079/3080 Micro Metal Gearmotor HPCB - 6V With Extended Motor Shaft

  • Brand: Pololu
  • Product Code:Pololu-HPCB-6V
  • Reward Points:20
  • Availability:In Stock
  • रo 2,019.00

  • Price in reward points:2019

  • 5 or more रo 1,970.00
  • 7 or more रo 1,954.00
  • 15 or more रo 1,938.00
  • 35 or more रo 1,922.00
  • 70 or more रo 1,907.00
