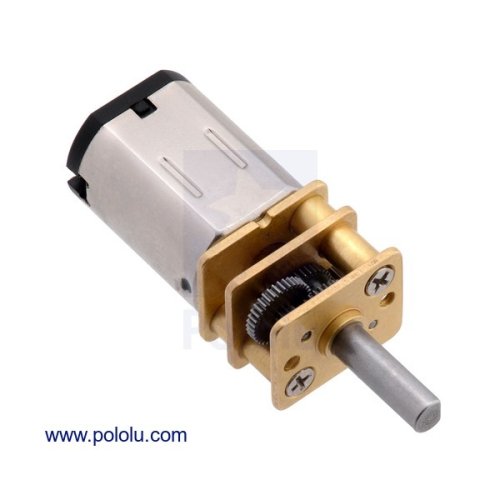

These tiny brushed DC gearmotors are available in a wide range of gear ratios—from 5:1 up to 1000:1—and with five different motors: high-power 6 V and 12 V motors with long-life carbon brushes (HPCB), and high-power (HP), medium power (MP), and low power (LP) 6 V motors with shorter-life precious metal brushes. The 6 V and 12 V HPCB motors offer the same performance at their respective nominal voltages, just with the 12 V motor drawing half the current of the 6 V motor. The 6 V HPCB and 6 V HP motors are identical except for their brushes, which only affect the lifetime of the motor.

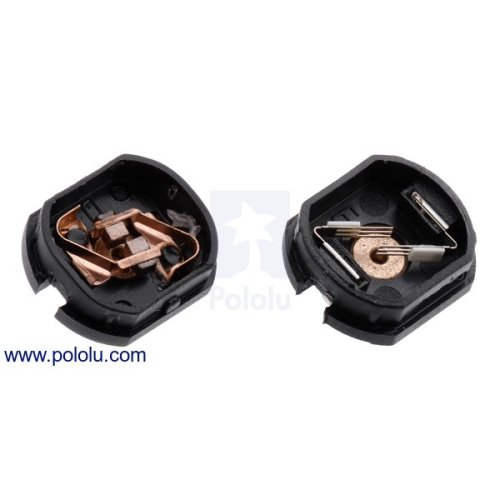

The HPCB versions (shown on the left in the picture below) can be differentiated from versions with precious metal brushes (shown on the right) by their copper-colored terminals. Note that the HPCB terminals are 0.5 mm wider than those on the other micro metal gearmotor versions (2 mm vs. 1.5 mm), and they are about 1 mm closer together (6 mm vs. 7 mm).
Rated Voltage |
Motor Type |
Stall Current |
No-Load Current |
No-Load Speed (RPM) |
Extrapolated Stall Torque |
Max Power (W) |
Single-Shaft (Gearbox Only) |
Dual-Shaft (Gearbox & Motor) |
|
---|---|---|---|---|---|---|---|---|---|
(kg ⋅ cm) | (oz ⋅ in) | ||||||||
12 V |
high-power, carbon brushes (HPCB) |
0.75 A | 0.06 A | 6000 | 0.19 | 2.6 | – | 5:1 HPCB 12V | 5:1 HPCB 12V dual-shaft |
3000 | 0.24 | 3.3 | – | 10:1 HPCB 12V | 10:1 HPCB 12V dual-shaft | ||||
1100 | 0.39 | 5.4 | 1.1 | 30:1 HPCB 12V | 30:1 HPCB 12V dual-shaft | ||||
650 | 0.67 | 9.3 | 1.1 | 50:1 HPCB 12V | 50:1 HPCB 12V dual-shaft | ||||
450 | 1.0 | 14 | 1.1 | 75:1 HPCB 12V | 75:1 HPCB 12V dual-shaft | ||||
330 | 1.3 | 18 | 1.1 | 100:1 HPCB 12V | 100:1 HPCB 12V dual-shaft | ||||
220 | 1.8 | 25 | 1.0 | 150:1 HPCB 12V | 150:1 HPCB 12V dual-shaft | ||||
160 | 2.5 | 35 | 1.0 | 210:1 HPCB 12V | 210:1 HPCB 12V dual-shaft | ||||
130 | 3.0 | 42 | 1.1 | 250:1 HPCB 12V | 250:1 HPCB 12V dual-shaft | ||||
110 | 3.3 | 46 | 1.0 | 298:1 HPCB 12V | 298:1 HPCB 12V dual-shaft | ||||
35 | 10 | 140 | – | 1000:1 HPCB 12V | 1000:1 HPCB 12V dual-shaft |
Pacage Includes:
- 1 x Pololu 3036/3037/3038/3039/3040/3041/3042/3043/3044/3045/3046 Micro Metal Gearmotor HPCB 12V
Pololu 3036/3037/3038/3039/3040/3041/3042/3043/3044/3045/3046 Micro Metal Gearmotor HPCB 12V
- Brand: Pololu
- Product Code:Pololu-MMG-HPCB-12V
- Reward Points:19
- Availability:In Stock
-
रo 1,934.00
- Price in reward points:1934
-
- 5 or more रo 1,886.00
- 8 or more रo 1,871.00
- 15 or more रo 1,855.00
- 40 or more रo 1,840.00
- 75 or more रo 1,825.00
