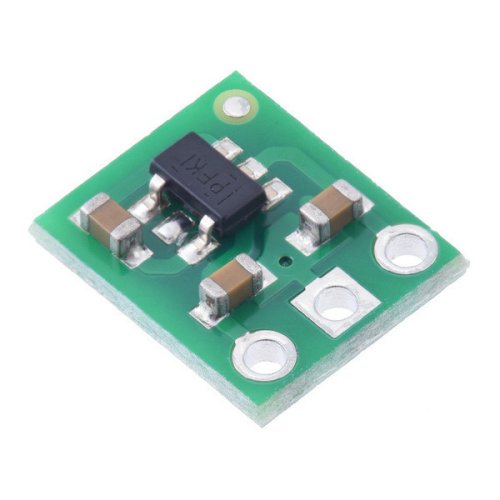

This board is a charge pump voltage inverter that converts an input voltage between 1.8 V and 5.3 V to a corresponding negative output voltage, with a typical efficiency of over 80%. The inverter can deliver a continuous output current of 60 mA across most of its operating range, making it a simple solution for applications requiring a lower-power negative supply, including sensor biasing and bipolar op-amp circuits.
Features:
- Input voltage: 1.8 V to 5.3 V
- Negative output voltage is inverted from input
- Typical continuous output current: 60 mA
- <200 µA typical no-load quiescent current
Documents:
Package Includes:

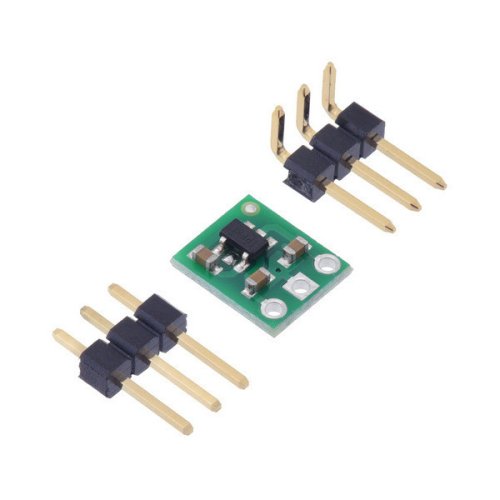

- 1 x Pololu 2839 Charge Pump Voltage Inverter: 1.8-5.3V, 60mA
| Electrical Specifications | |
| Input Voltage | 1.8 V to 5.3 V |
| Output Current | 60mA |
| Physical Attributes | |
| Weight | 0.17g |

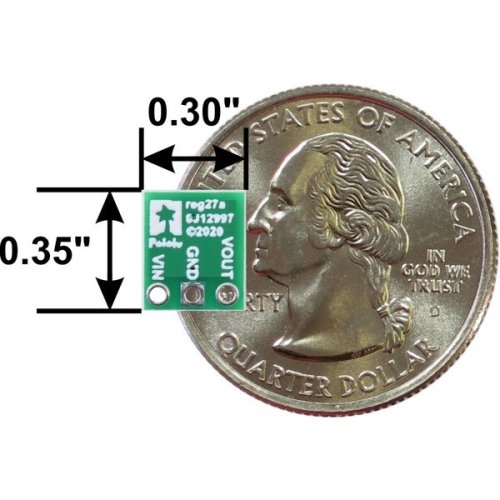

| Dimensions | 0.3″ × 0.35″ × 0.09″ |
| Additional Information | |
| Warranty | |
Pololu 2839 Charge Pump Voltage Inverter: 1.8-5.3V, 60mA
- Brand: Pololu
- Product Code:Pololu-2839-Charge-Pump
- Reward Points:2
- Availability:In Stock
- रo 233.00
-
रo 224.00
- Price in reward points:233
-
- 25 or more रo 225.00
- 63 or more रo 223.00
- 96 or more रo 216.00
- 131 or more रo 214.00
- 327 or more रo 213.00
