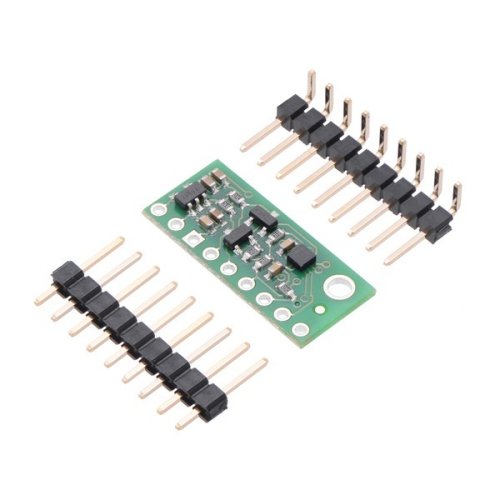

This board is a compact (0.4″ × 0.9″) breakout board for ST’s LIS3MDL three-axis digital magnetic sensor. The LIS3MDL is a great IC, but its small package makes it difficult for the typical student or hobbyist to use. It also operates at voltages below 3.6 V, which can make interfacing difficult for microcontrollers operating at 5 V. This carrier board addresses these issues by incorporating additional electronics, including a 3.3 V voltage regulator and level-shifting circuits, while keeping the overall size as compact as possible.
The LIS3MDL has many configurable options, including four selectable sensitivity (gain) settings, a wide choice of output data rates, and a programmable external interrupt signal. The three magnetic field strength readings are available through a digital interface, which can be configured to operate in either I²C (TWI) or SPI mode.

Included components:
A 1×9 strip of 0.1″ header pins and a 1×9 strip of 0.1″ right-angle header pins are included. You can solder the header strip of your choice to the board for use with custom cables or solderless breadboards, or you can solder wires directly to the board itself for more compact installations.

Specifications:

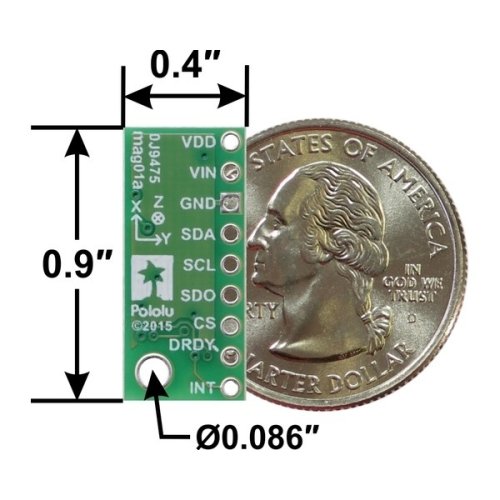

  • Dimensions: 0.4″ × 0.9″ × 0.1″ (10 × 23 × 3 mm)
  • Weight without header pins: 0.6 g (0.02 oz)
  • Operating voltage: 2.5 V to 5.5 V
  • Supply current: 3 mA
  • Output format (I²C/SPI): one 16-bit reading per axis
  • Sensitivity range (configurable): ±4, ±8, ±12, or ±16 gauss
Documents:
Package Includes:
  • 1 x Pololu 2737 LIS3MDL 3-Axis Magnetometer Carrier with Voltage Regulator
Electrical Specifications
Minimum Operating Voltage 2.5 V
Maximum Operating Voltage 5.5 V
Physical Attributes
Weight 0.6 g (0.02 oz)
Dimensions 0.4″ × 0.9″ × 0.1″ (10 × 23 × 3 mm)
Additional Information
Warranty

Write a review

Please login or register to review

Pololu 2737 LIS3MDL 3-Axis Magnetometer Carrier with Voltage Regulator

  • Brand: Pololu
  • Product Code:Pololu-2737-LIS3MDL
  • Reward Points:13
  • Availability:In Stock
  • रo 1,288.00

  • Price in reward points:1288

  • 5 or more रo 1,255.00
  • 10 or more रo 1,245.00
  • 25 or more रo 1,235.00
  • 55 or more रo 1,225.00
  • 115 or more रo 1,215.00
