This Optical Encoder Pair Kit for Micro Metal Gearmotors set includes sensor boards and reflective wheels to add quadrature encoding to two micro metal gearmotors with extended back shafts (motors are not included with this kit). 3-tooth and 5-tooth encoder wheels are included to provide options of 12 counts per revolution and 20 counts per revolution of the motor shaft (to compute the encoder counts per revolution of the gearbox output, multiply by the gear ratio).

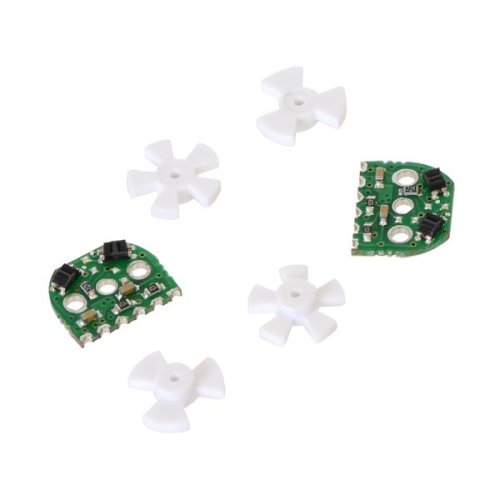

Add quadrature encoders to your LP, MP, or HP micro metal gearmotors (extended back shaft version required) with this kit consisting of two sensor boards, two 3-tooth encoder wheels, and two 5-tooth encoder wheels. The installed system does not exceed the 12 mm × 10 mm cross section of the motors and extends only 5 mm beyond the plastic motor end cap. The 3-tooth wheel provides 12 counts per revolution; using the 5-tooth wheel yields 20 counts per revolution.

The encoder boards are available in two versions that are optimized for operation at 5.0 V and 3.3 V. The only difference is in the electrical configuration of the IR LEDs in the reflectance sensors.

Specifications:

  • Optical Encoder Pair Kit for Micro Metal Gearmotors - 3.3V
Voltage 3.3V
Average Input Current 24mA
  • Optical Encoder Pair Kit for Micro Metal Gearmotors - 5V
Voltage 5V
Average Input Current 12mA

Documents:

Package Includes:

  • 1 x Pololu 2590 / 2591 Optical Encoder Pair Kit for Micro Metal Gearmotors
Electrical Specifications
Input Voltage 2590-5V, 2591-3.3V
Input Current 2590-12mA, 2591-24mA
Physical Attributes
Weight 0.7g

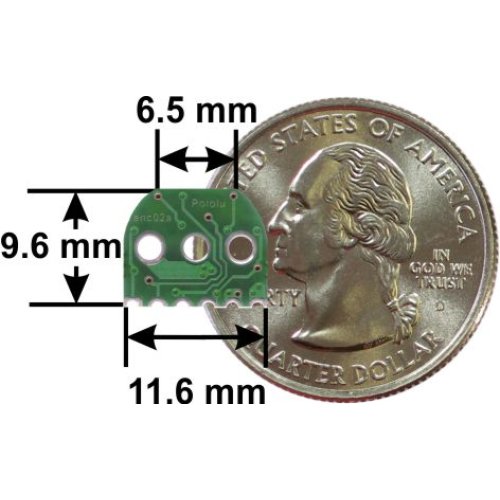

Dimensions 9.6 mm × 11.6 mm
Additional Information
Warranty

Write a review

Please login or register to review

Pololu 2590 / 2591 Optical Encoder Pair Kit for Micro Metal Gearmotors

  • Brand: Pololu
  • Product Code:Pololu-2590-2591-Optical-Encoder
  • Reward Points:9
  • Availability:In Stock
  • रo 944.00

  • Price in reward points:944

  • 5 or more रo 897.00
  • 15 or more रo 889.00
  • 25 or more रo 865.00
  • 35 or more रo 858.00
  • 80 or more रo 851.00
  • 165 or more रo 844.00

Available Options
