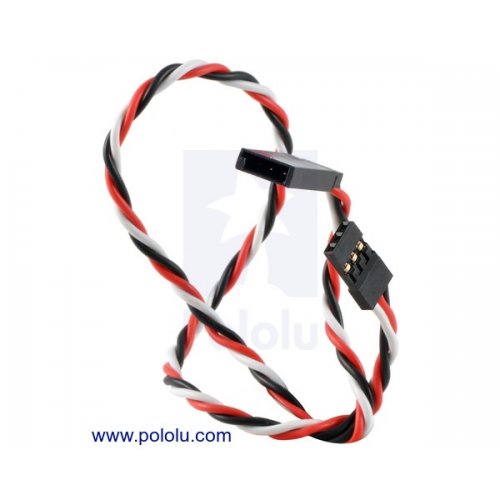

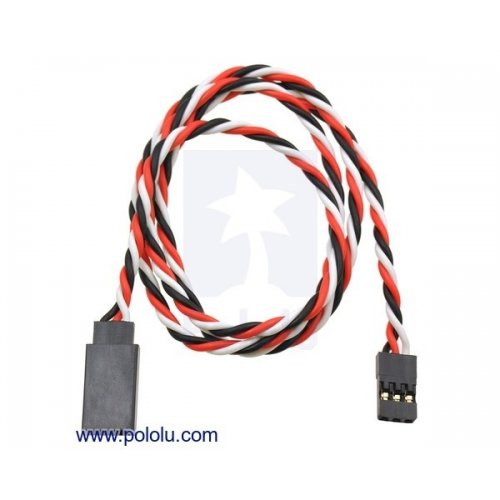

This twisted cable can be used to extend the leads of many common RC hobby servos. It has three 22-AWG wires , and both the male and female cable ends are compatible with both JR- and Futaba-style connectors, allowing it to work in either system or as an adapter between systems. The cable’s conductors each consist of 60 strands, making it much more flexible than standard servo cables, and the wires are twisted to reduce electromagnetic interference (EMI).

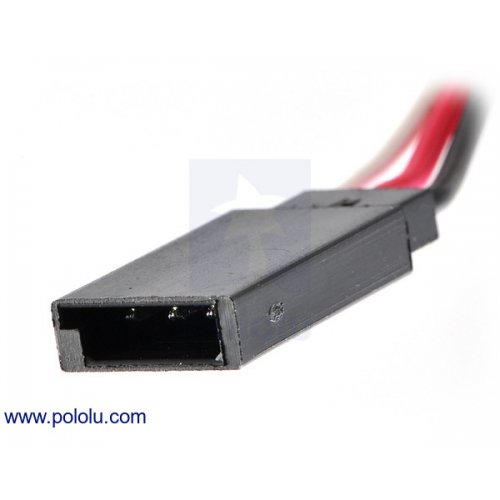

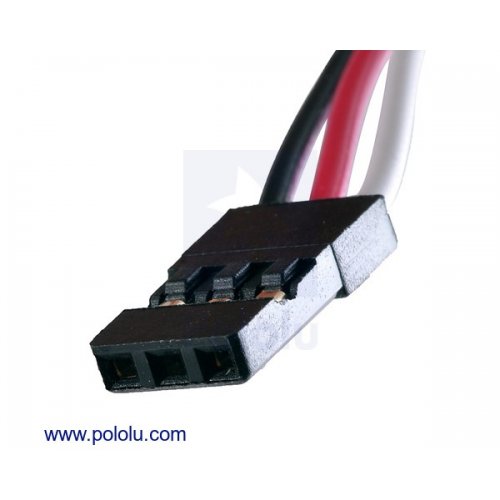

This servo extension cable has three 22-AWG wires joining a male Futaba J connector and a female JR connector. Since a female JR connector can be plugged into a male Futaba J connector, each end of the cable is compatible with both Futaba and JR-style connections; this cable will work as an extension cable in either system or as an adapter between systems, and it is compatible with almost all of the RC servos we sell (you can assume our servos have female JR connectors unless the servo’s product page specifically says otherwise). The connectors have gold-flashed contacts on a 0.1" spacing, and each wire is comprised of 60 strands, making this cable more flexible than standard servo cables.

These male-to-female cables are available in 2 lengths:

  • 12 inches
  • 24 inches

We also sell flat female-to-female, twisted female-to-female and twisted male-to-female servo extension cables.

Servo cable color convention:

  • brown or black = ground (GND, battery negative terminal)
  • red = servo power (Vservo, battery positive terminal)
  • orange, yellow, white, or blue = servo control signal line

Warranty:

  • Warranty will not apply if Product fails or is damaged after delivery to you due to accident, abuse or misuse.

Package Includes:

  • 1 x Pololu 2169/2168 Twisted Servo Extension Cable  (Male - Female)


Write a review

Please login or register to review

Pololu 2169 / 2168 Twisted Servo Extension Cable (Male - Female)

  • Brand: Pololu
  • Product Code:Pololu-Twisted-M-F-Cable
  • Reward Points:3
  • Availability:In Stock
  • रo 340.00

  • Price in reward points:340

  • 5 or more रo 323.00
  • 25 or more रo 309.00
  • 45 or more रo 306.00
  • 100 or more रo 293.00
  • 250 or more रo 281.00
  • 500 or more रo 273.00
