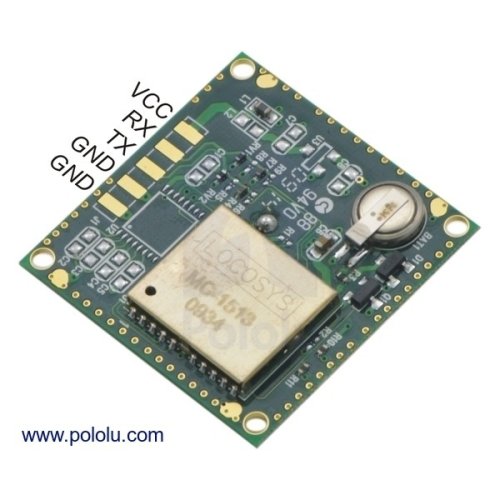

The LS20031 global positioning system (GPS) receiver module from Locosys receives GPS data on up to 66 channels and outputs the data in more than 6 different National Marine Electronics Association (NMEA) GPS sentences to a TTL-level serial port at a rate of up to 10 Hz. Since the GPS module has an integrated ceramic antenna, you don’t need to buy an external antenna or worry about the many different antenna connectors. The module can typically acquire a fix from a cold start in 32 seconds, and, by saving information about the satellites it was last connected to, the LS20031 can acquire a hot-start fix in less than 1 second.

Features:
  • 32 second cold start, less than 1 second hot start
  • Supports 66-channel GPS
  • Up to 10Hz update rate
  • 3 to 4.2 V operating range
  • Built-in rechargeable battery to preserve system data for rapid satellite acquisition
  • Red LED indicator for GPS fix or no fix
  • MediaTek MT3339 receiver chipset
  • Capable of QZSS and SABS (WAAS, EGNOS, MSAS, GAGAN)
  • Self-generated ephemeris prediction
  • Supports assisted GPS (AGPS)
Documents:
Package Includes:
  • 1 x Pololu 2138 66-Channel LS20031 GPS Receiver Module (MT3339 Chipset)
Electrical Specifications
Minimum Operating Voltage 3V
Maximum Operating Voltage 4.2V
Additional Information
Warranty

Write a review

Please login or register to review

Pololu 2138 66-Channel LS20031 GPS Receiver Module (MT3339 Chipset)

  • Brand: Pololu
  • Product Code:Pololu-2138-LS20031-GPS
  • Reward Points:46
  • Availability:In Stock
  • रo 4,611.00

  • Price in reward points:4611

  • 3 or more रo 4,574.00
  • 6 or more रo 4,340.00
  • 15 or more रo 4,304.00
  • 30 or more रo 4,269.00
